LL type yoke plate, just like a parallelogram, is one kind of combined yoke plate used to connect four-split conductors subjected to single-connection insulator string. It is usually applicable for 500KV high-voltage transmission line, and it can effectively support & keep the distance among the four pieces of split conductors. Meanwhile its four supporting points are of strong tenacity, preventing the conductors from dropping as well as ensuring that overhead wire can steadily & chronically work.

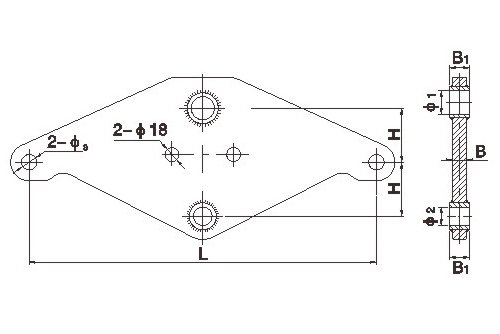

Type		Dimension (mm)							Nominal Failure Load (kN)	Weight (kg)
		B	B1	Φ1	Φ2	Φ3	H	L
	LL-1645	18	/	26	24	20	70	450	160	6.9
	LL-2145	18	26	30	24	20	70	450	200	6.9
	LL-2545	18	30	33	24	20	70	450	250	7.0
