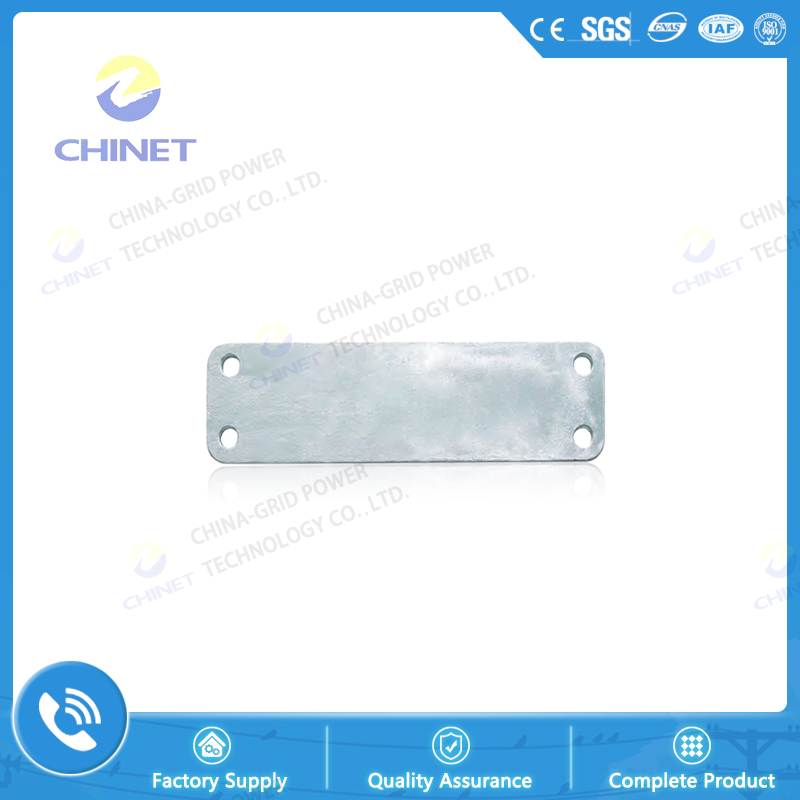

LS type yoke plate is used for assembly of twin-connection tension insulator string with two or three pieces of conductors as well as installation of yoke plate & twin-connection suspension insulator string with double suspension clamps in substation. It is used for 500KV high-voltage transmission line, and it can support & keep the distance among the split conductors. Meanwhile its supporting points are of strong tenacity, preventing the conductors from dropping as well as ensuring that overhead wire can steadily work.

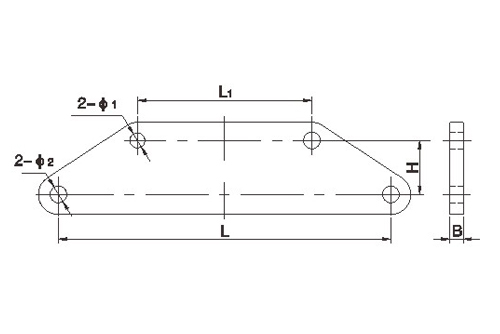

Type		Dimension (mm)						Nominal Failure Load (kN)	Weight (kg)
		B	Φ1	Φ2	H	L	L1
	LS-1212	16	18	20	65	400	120	120	5
	LS-1221						210	120	5.35
	LS-1225						250	120	5.54
	LS-1229						290	120	5.73
	LS-1233						330	120	5.92
	LS-1237						370	120	6.11
	LS-1255						550	120	8.66
