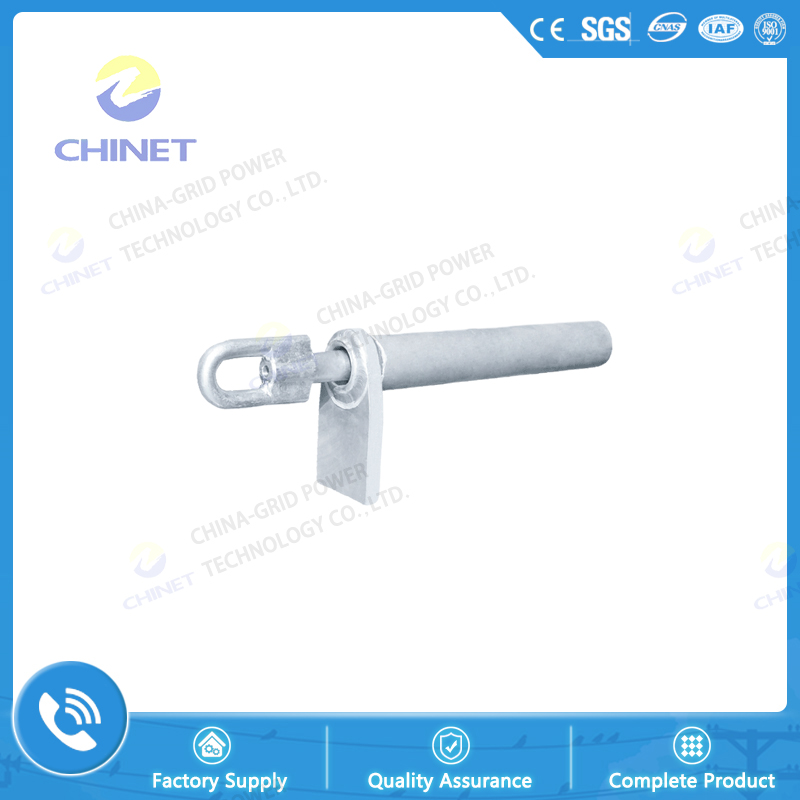

NYH Hydraulic Compression Strain Clamp for Welding Wire

Classification：Strain Clamp

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

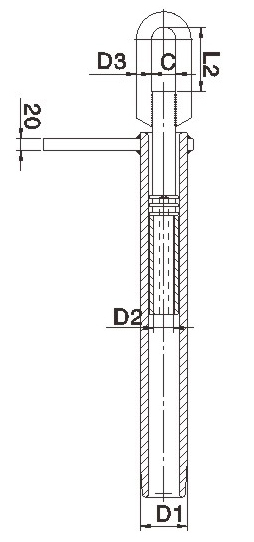

NYH Hydraulic Strain Clamp Without Drainage Plate:
Type Applicable Conductor Dimension (mm) Holding Strength (kn) Weight (kg)
D1 D2 D3 L2 C
NYH-600K LGKK-600 76 - 20 70 30 107 8
NYH-900K LGKK-900 74 - 24 85 30 137 6.5
NYH-1400/80 LGJQT-1400/80 76 30 24 70 40 294 7.3
NYH-1400/100 LGJQT-1400/100 76 30 24 70 40 107 7.5
NYH-1400/120 LGJQT-1400/120 76 30 24 70 40 137 7.5
NYH-1400/135 LGJQT-1400/135 76 30 24 70 40 294 7.5
NYH-1000/125N NRLH5860GJ-1000/125 76 32 24 85 42 188 10.5
NYH-1440/120N NRLH5860GJ-1000/120N 80 34 26 110 41 313 12.5
NYH-1440/135N NRLH5860GJ-1000/135N 80 34 26 110 41 313 12.5

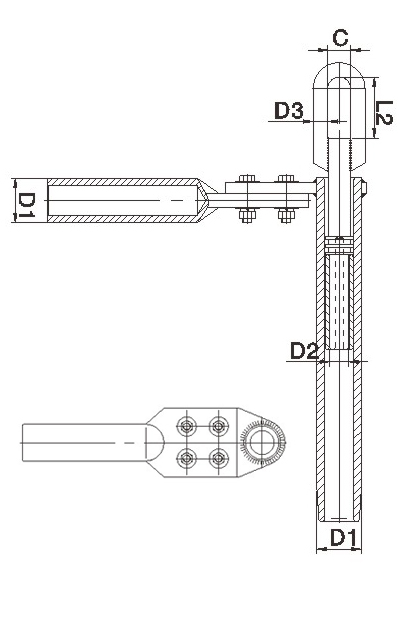

NYH Hydraulic Strain Clamp With Drainage Plate:
Type Applicable
Conductor 		Dimension (mm) Holding Strength (kn) Weight (kg)
D1 D2 D3 L2 C
NYH-600/600K LGKK-600 76 - 20 70 30 107 8
NYH-900K LGKK-900900K 74 - 24 85 30 137 6.5
NYH-1400/1400/80 LGJQT-1400/80 76 30 24 70 40 294 7.3
NYH-1400/1400/100 LGJQT-1400/100 76 30 24 70 40 107 7.5
NYH-1400/1400/120 LGJQT-1400/120 76 30 24 70 40 137 7.5
NYH-1400/1400/135 LGJQT-1400/135 76 30 24 70 40 294 7.5
NYH-1000/1000/125N NRLH5860GJ-1000/125 76 32 24 85 42 188 10.5
NYH-1400N/1440/120N NRLH5860GJ-1000/120N 80 34 26 110 41 313 12.5
NYH-1400N/1440/135N NRLH5860GJ-1000/135N 80 34 26 110 41 313 12.5
