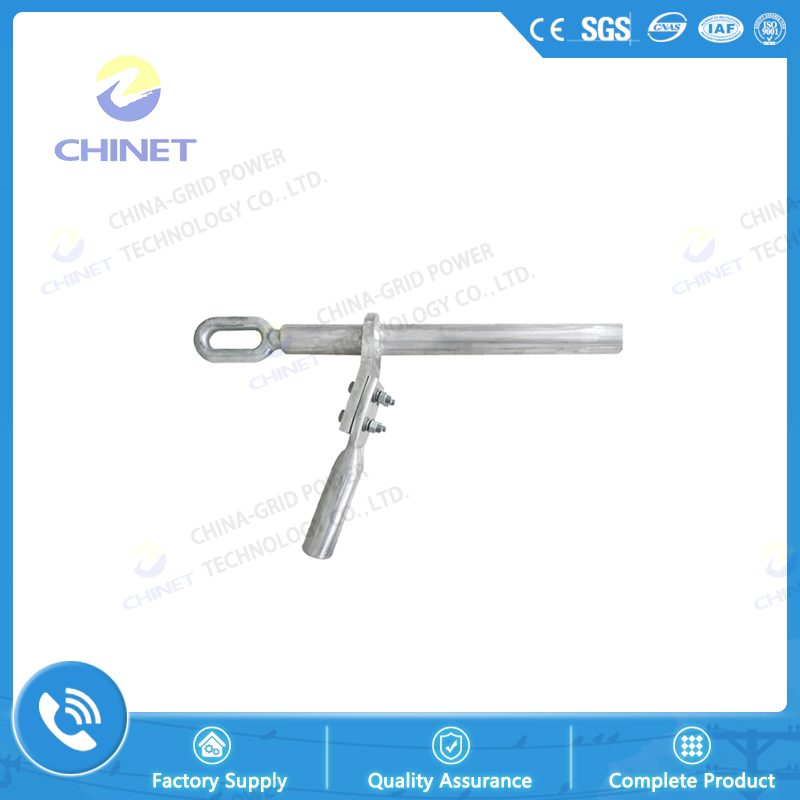

NY-N type hydraulic compression strain clamp is used to fix & connect conductor onto the tension insulator string or the fittings on pole & tower through sustaining tensile force generated by the conductor.

It is made up of high-strength aluminum & steel materials, with clean surface & durable usage period; meanwhile it is easy for installation, free of hysteresis loss, low carbon & energy saving.

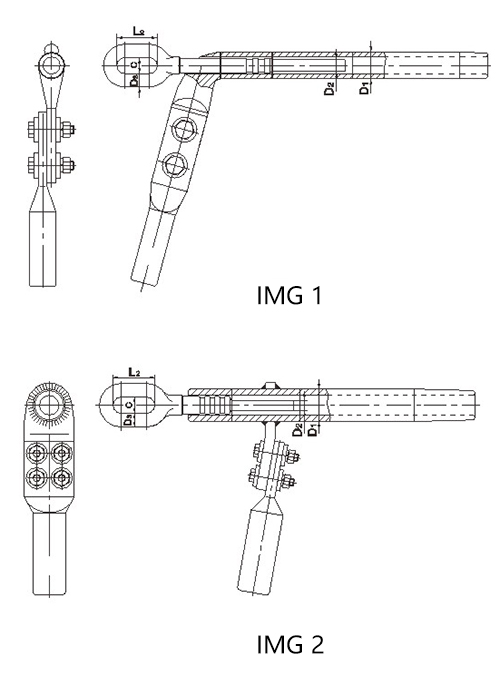

Type		Applicable Conductor	IMG	Main Dimensions (mm)					Grip (≥kN)
				D1	D2	D3	C	L2
	NY-185/25N	NRLH5860GJ-185/25	1	36	14	16	22	65	54
	NY-185/30N	NRLH5860GJ-185/30	1	36	16	16	22	65	59
	NY-240/30N	NRLH5860GJ-240/30	1	45	18	18	24	70	69
	NY-240/40N	NRLH5860GJ-240/40	1	45	18	18	24	70	77
	NY-300/25N	NRLH5860GJ-300/25	1	50	14	18	24	70	76
	NY-300/40N	NRLH5860GJ-300/40	1	50	16	20	24	70	85.5
	NY-300/50N	NRLH5860GJ-300/50	1	50	18	20	24	70	96
	NY-400/35N	NRLH5860GJ-400/35	2	55	16	20	26	78	93.6
	NY-400/50N	NRLH5860GJ-400/50	2	55	20	22	26	78	112
	NY-500/35N	NRLH5860GJ-500/35	2	65	18	22	26	78	109
	NY-500/45N	NRLH5860GJ-500/45	2	65	20	22	26	78	117
	NY-500/65N	NRLH5860GJ-500/65	2	65	22	22	26	78	140
	NY-630/45N	NRLH5860GJ-630/45	2	70	18	22	26	78	133.6
	NY-630/80N	NRLH5860GJ-630/80	2	70	24	24	30	80	178
	NY-800/55N	NRLH5860GJ-800/55	2	72	20	24	30	80	175

1.Strain clamp (heat-resistant aluminum alloy stranded wire, complete forging type, hydraulic type) Model is NY-xxN.1

2.The clamp body and the drainage plate are made of aluminum, and the rest are hot-dip galvanized steel.
