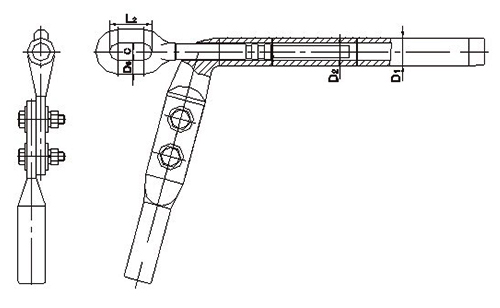

NY-BG type strain clamp used for aluminum-clad ACSR is used to fix & connect conductor onto the tension insulator string or the fittings on pole & tower through sustaining tensile force generated by the conductor.
It is made up of high-strength aluminum & steel materials, with clean surface & durable usage period; meanwhile it is easy for installation, free of hysteresis loss, low carbon & energy saving.
| Type | Applicable Conductor |
Dimension (mm) |
Grip (kN) |
||||
| D1 | D2 | D3 | C | L2 | |||
| NY-150/25BG.1 | JL/LB20A-150/25 | 32 | 16 | 16 | 22 | 65 | 51.5 |
| NY-150/35BG.1 | JL/LB20A-150/35 | 32 | 16 | 16 | 22 | 65 | 62.0 |
| NY-185/25BG.1 | JL/LB20A-185/25 | 36 | 16 | 16 | 22 | 65 | 56.5 |
| NY-185/30BG.1 | JL/LB20A-185/30 | 36 | 16 | 16 | 22 | 65 | 61.5 |
| NY-240/30BG.1 | JL/LB20A-240/30 | 38 | 18 | 18 | 24 | 70 | 72.0 |
| NY-240/40BG.1 | JL/LB20A-240/40 | 38 | 18 | 18 | 24 | 70 | 79.0 |
| NY-240/55BG.1 | JL/LB20A-240/55 | 38 | 20 | 20 | 26 | 78 | 97.0 |
| NY-300/25BG.1 | JL/LB20A-300/25 | 42 | 16 | 18 | 24 | 70 | 79.5 |
| NY-300/40BG.1 | JL/LB20A-300/40 | 42 | 18 | 18 | 24 | 70 | 88.0 |
| NY-300/50BG.1 | JL/LB20A-300/50 | 42 | 18 | 18 | 24 | 70 | 98.5 |
| NY-300/70BG.1 | JL/LB20A-300/70 | 45 | 22 | 20 | 26 | 78 | 122.0 |
| NY-400/25BG.1 | JL/LB20A-400/25 | 48 | 18 | 18 | 24 | 70 | 91.0 |
| NY-400/35BG.1 | JL/LB20A-400/35 | 48 | 18 | 20 | 26 | 78 | 99.0 |
| NY-400/50BG.1 | JL/LB20A-400/50 | 48 | 20 | 20 | 26 | 78 | 117.0 |
| NY-400/65BG.1 | JL/LB20A-400/65 | 48 | 22 | 22 | 26 | 78 | 128.5 |
|
1. The clamp body and the drainage plate are made of aluminum, and the rest are hot-dip galvanized steel. |
|||||||
