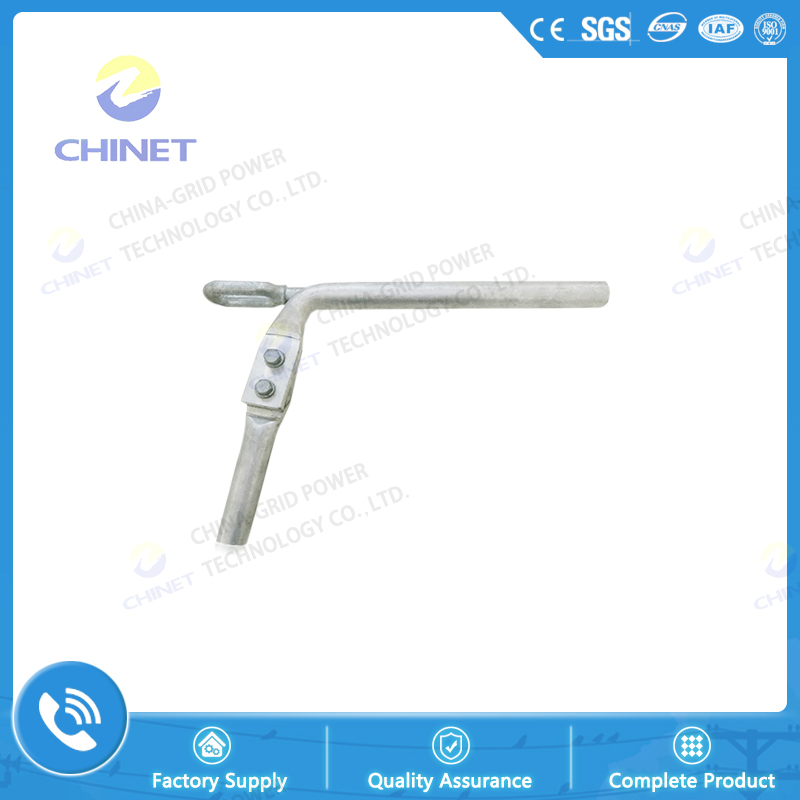

NB type hydraulic compression strain clamp is used to fix & connect conductor onto the tension insulator string or the fittings on pole & tower through sustaining tensile force generated by the conductor.
It is made up of high-strength aluminum & steel materials, with clean surface & durable usage period; meanwhile it is easy for installation, free of hysteresis loss, low carbon & energy saving.

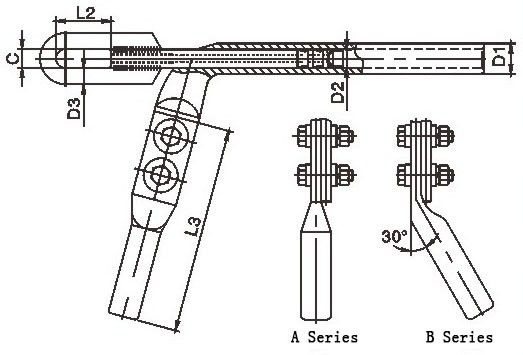

| Type | Applicable Conductor | Dimension (mm) | Grip (kN) | ||||
| D1 | D2 | D3 | C | L2 | |||
| NB-120/20 | LGJ-120/20 | 30 | 16 | 16 | 20 | 55 | 39.0 |
| NB-120/25 | LGJ-120/25 | 16 | 16 | 20 | 55 | 45.5 | |
| NB-150/20 | LGJ-150/20 | 16 | 16 | 20 | 55 | 44.0 | |
| NB-150/25 | LGJ-150/25 | 18 | 16 | 20 | 55 | 51.5 | |
| NB-150/35 | LGJ-150/35 | 18 | 16 | 20 | 55 | 62.0 | |
| NB-185/25 | LGJ-185/25 | 32 | 18 | 16 | 20 | 55 | 56.5 |
| NB-185/30 | LGJ-185/30 | 18 | 16 | 20 | 55 | 61.5 | |
| NB-185/45 | LGJ-185/45 | 34 | 20 | 18 | 23 | 55 | 76.5 |
| NB-240/30 | LGJ-240/30 | 36 | 20 | 18 | 23 | 55 | 72.0 |
| NB-240/40 | LGJ-240/40 | 20 | 18 | 23 | 55 | 79.0 | |
| NB-240/55 | LGJ-240/55 | 22 | 20 | 24 | 65 | 97.0 | |
| NB-300/15 | LGJ-300/15 | 40 | 22 | 16 | 23 | 55 | 65.0 |
| NB-300/20 | LGJ-300/20 | 22 | 18 | 23 | 55 | 72.0 | |
| NB-300/25 | LGJ-300/25 | 22 | 18 | 23 | 55 | 79.5 | |
| NB-300/40 | LGJ-300/40 | 22 | 20 | 23 | 55 | 88.0 | |
| NB-300/50 | LGJ-300/50 | 24 | 20 | 27 | 65 | 98.5 | |
| NB-300/70 | LGJ-300/70 | 42 | 24 | 22 | 27 | 70 | 122.0 |
| NB-400/20 | LGJ-400/20 | 45 | 26 | 18 | 27 | 65 | 84.5 |
| NB-400/25 | LGJ-400/25 | 26 | 18 | 27 | 65 | 91.0 | |
| NB-400/35 | LGJ-400/35 | 26 | 20 | 27 | 70 | 99.0 | |
| NB-400/50 | LGJ-400/50 | 26 | 22 | 27 | 70 | 117.0 | |
| NB-400/65 | LGJ-400/65 | 48 | 26 | 22 | 29 | 75 | 128.0 |
| NB-400/95 | LGJ-400/95 | 28 | 24 | 31 | 83 | 163.0 | |
