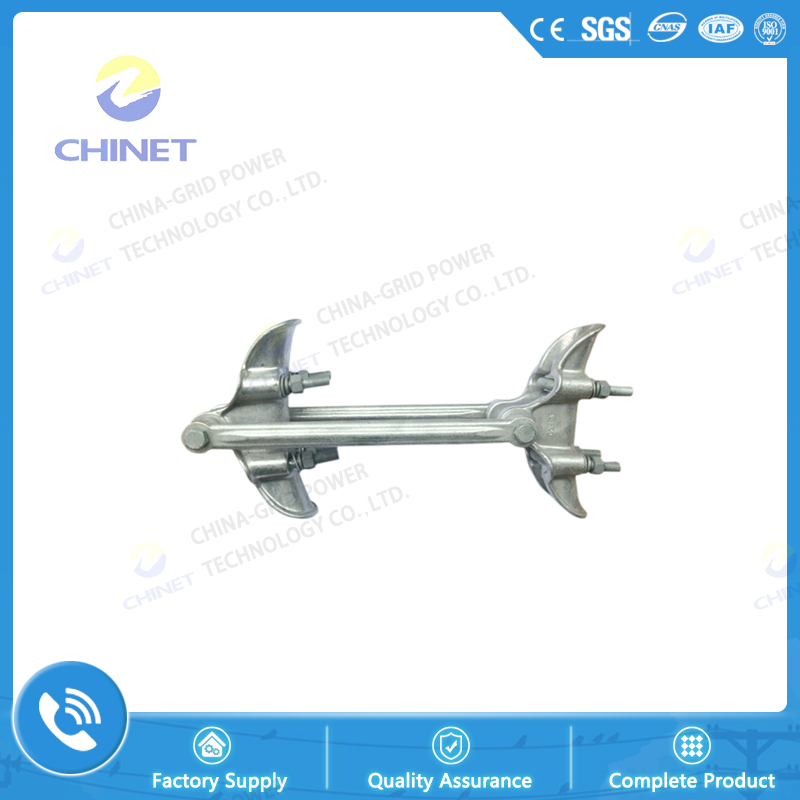

Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.
Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction. It meets the requirements of energy saving and consumption reduction in the national power grid transformation and construction.
When the suspension clamp is used for aluminum stranded wire and steel core aluminum stranded wire, it can be wrapped with aluminum sheathing or protective wire to protect the wire. The applicable outer diameter of the wire includes wrappings.
Percentage of suspension clamp gripping force to rated tensile force of wire:| Wire Class | Wire Structure(Aluminum Ratio) | Percent | |
|
ACSR (Steel core aluminum stranded wire) |
>1.7 | 12 |
| 4.0-4.5 | 18 | ||
| 5.0-6.5 | 20 | ||
| 7.0-8.0 | 22 | ||
| 11.0-20.2 | 24 | ||
| Steel stranded wire | Ultimate strength 1176-1274 | 14 | |
| Aluminum stranded wire | 30 | ||
| Type | Enterprise Standard model |
Suitable for wire diameter range (including wrapped wrapped)(mm) |
Main Dimensions(mm) |
Nominal failure load (kN) |
Matching Line Clamp | |||

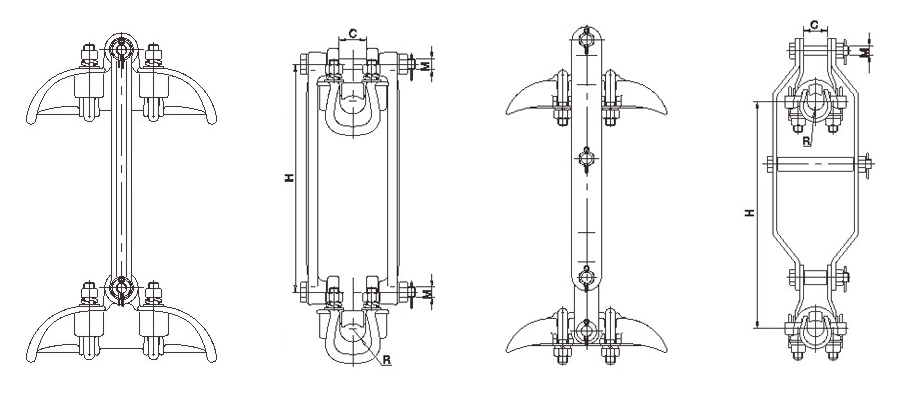

| H | R | C | M | |||||
| CSH-0422 | HHS-220 | Φ12.4~18.0 | 400 | 11 | 22 | 16 | 40 | CGH-3 |
| CSH-0426 | HHS-280 | Φ18.0~26.0 | 400 | 13 | 28 | 16 | 40 | CGH-4 |
| CSH-0734 |
HHS-330 HHS-370 |
Φ26.0~34.0 | 400 | 17 | 36 | 16 | 70 | CGH-5 |
| CSH-0742 | HSS-480 | Φ34.0~40.0 | 400 | 21 | 45 | 16 | 70 | CGH-6 |
| CSH-0746 | Φ40.0~46.0 | 400 | 23 | 48 | 16 | 70 | CGH-7 | |
| CSH-0726F | CCS-4 | Φ20.0~26.0 | 400 | 13 | 28 | 16 | 70 | CGF-4 |
| CSH-0734F | CCS-5 | Φ26.0~34.0 | 400 | 17 | 36 | 16 | 70 | CGF-5 |
| CSH-1040F | CCS-1040 | Φ34.0~40.0 | 400 | 20 | 42 | 18 | 100 | CGF-1040 |
| CSH-1046F | CCS-5 | Φ40.0~46.0 | 400 | 23 | 48 | 18 | 100 | CGF-6 |
| XCS-2 | CCS-2 | Φ7.1~13.0 | 250 | 7.0 | 22 | 16 | 40 | XGU-2 |
| XCS-3 | CCS-3 | Φ13.1~21.0 | 250 | 11.0 | 18 | 16 | 40 | XGU-3 |
| XCS-4 | CCS-4 | Φ21.1~26.0 | 400 | 13.5 | 19 | 18 | 70 | XGU-4 |
| XCS-5 | CCS-5 | Φ23.0~33.0 | 400 | 17.0 | 42 | 18 | 100 | XGU-5 |
| XCS-6 | CCS-6 | Φ34.0~45.0 | 400 | 23.0 | 42 | 18 | 100 | XGU-6 |
|
1. The CSH in the table is an aluminum alloy product, and "F" is added to the model to prevent halo.
|
||||||||
