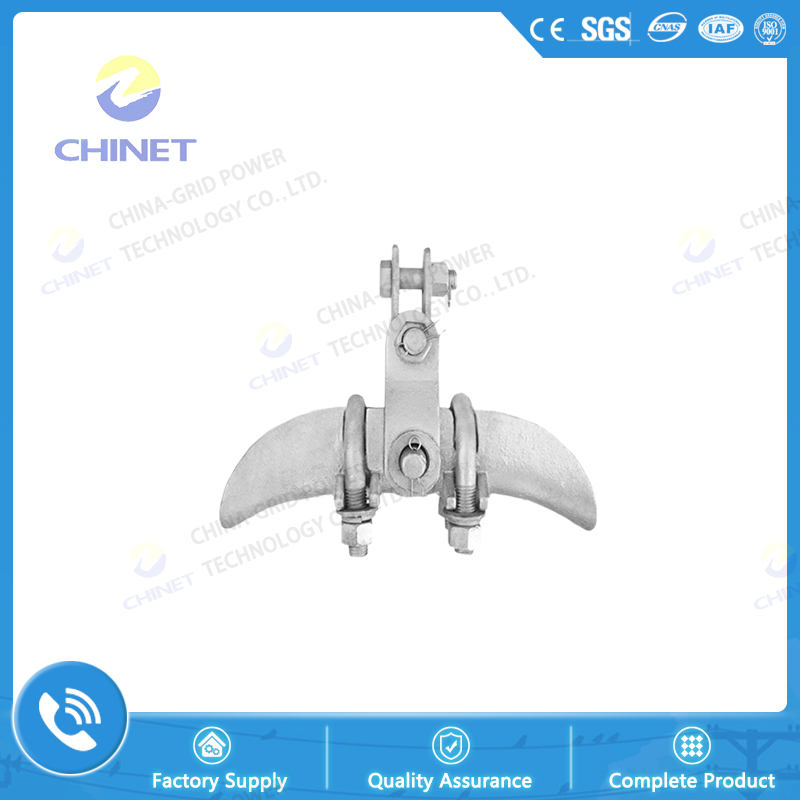

Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.

Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction. It meets the requirements of energy saving and consumption reduction in the national power grid transformation and construction.

When the suspension clamp is used for aluminum stranded wire and steel core aluminum stranded wire, it can be wrapped with aluminum sheathing or protective wire to protect the wire. The applicable outer diameter of the wire includes wrappings.

The energy-saving products developed by our company have passed the inspection of the Quality Inspection and Testing Center of the Ministry of Electric Power Industry, meet the requirements of GB2314 and relevant standards, and have passed the national energy-saving certification.

Wire Class		Wire Structure(Aluminum Ratio)	Percent
	ACSR (Steel core aluminum stranded wire)	>1.7	12
		4.0-4.5	18
		5.0-6.5	20
		7.0-8.0	22
		11.0-20.2	24
	Steel stranded wire	Ultimate strength 1176-1274	14
	Aluminum stranded wire		30

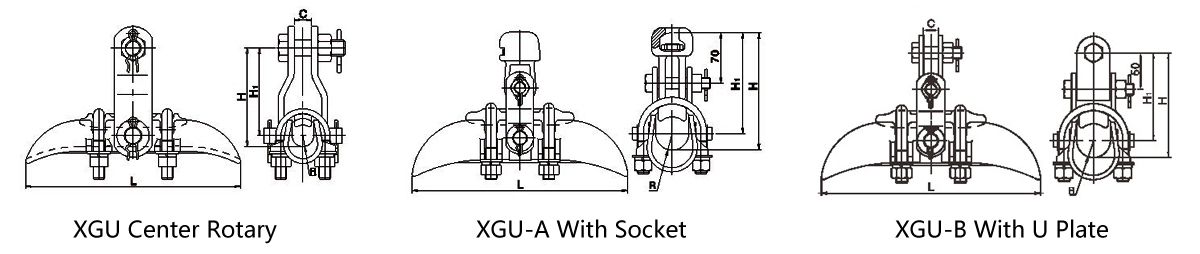

Type	Remark	Suitable for Wire Diameter Range (Including Wrapped)(mm)	Main Dimensions (mm)					Nominal Failure Load (kN)	Weight (kg)
			H	H1	L	R	C
XGU-1	Equivalent Model XGZ-4009	5.0~7.0	82	70	180	4.0	18	40	1.4
XGU-2	Equivalent Model XGZ-4014	7.1~13.0	82	70	200	7.0	22	40	1.5
XGU-3	Equivalent Model XGZ-4022	13.1~21.0	102	90	220	11.0	18	40	2.0
XGU-4		21.1~26.0	110	90	250	13.5	18	40	3.0
XGU-5A	with Socket	23.0~33.0	157	140	300	17		70	5.7
XGU-5B	with U Plate	23.0~33.0	137	120	300	17	20	70	5.4
XGU-6A	with Socket	34.0~45.0	163	140	300	23		70	6.1
XGU-6B	with U Plate	34.0~45.0	143	120	300	23	20	70	5.8
XGU-7B	with U Plate	45.0~48.7	156	130	300	26	20	70	6.2
