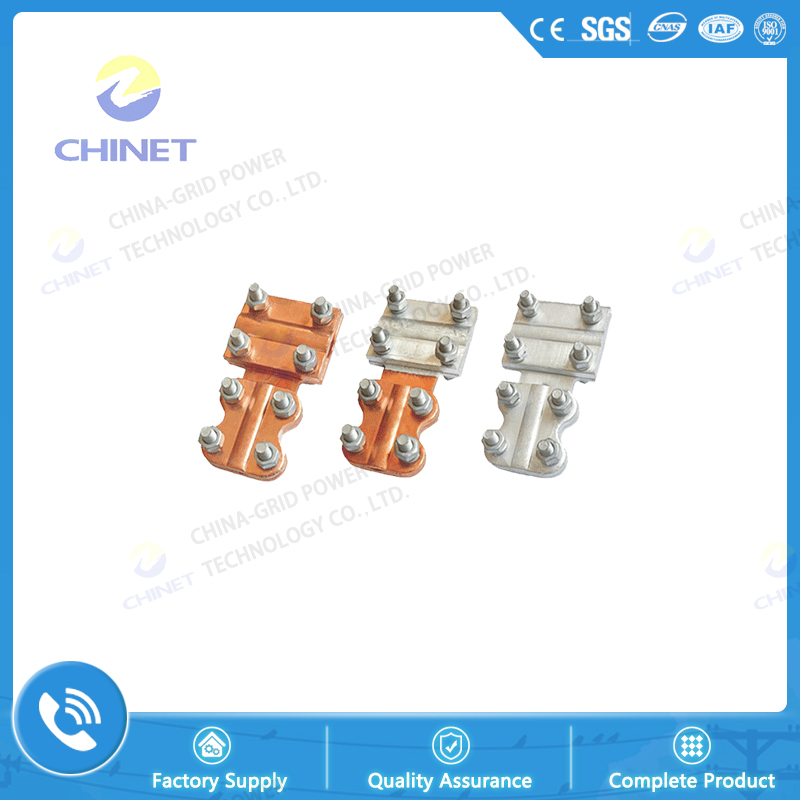

Suitable for branch connection of overhead lines or 10kV overhead insulated cables. The product consists of the clamp body, the main line gland, the branch line gland and the bolt. The product is divided into three forms of aluminum, copper and copper-aluminum oversubtraction. The body of the copper-aluminum branch clamp uses flash welding technology, which has stable and reliable performance. The insulation cover is used in conjunction with the clamp to provide insulation protection.

Type	Specifications	Applicable Main Line		Branch Line
		Wire Cutting (mm2)	Clip Line Range (mm)
J10FKL3 (Aluminum) J10FKG3 (Copper Aluminum) J10FKT3 (Copper)	-1/x	16~25	4.8~6	According to user needs
	-2/x	35~50	7~8.5
	-3/x	70~120	10~13
	-4/x	150~240	14.6~18.4
The branch line is determined according to user needs
