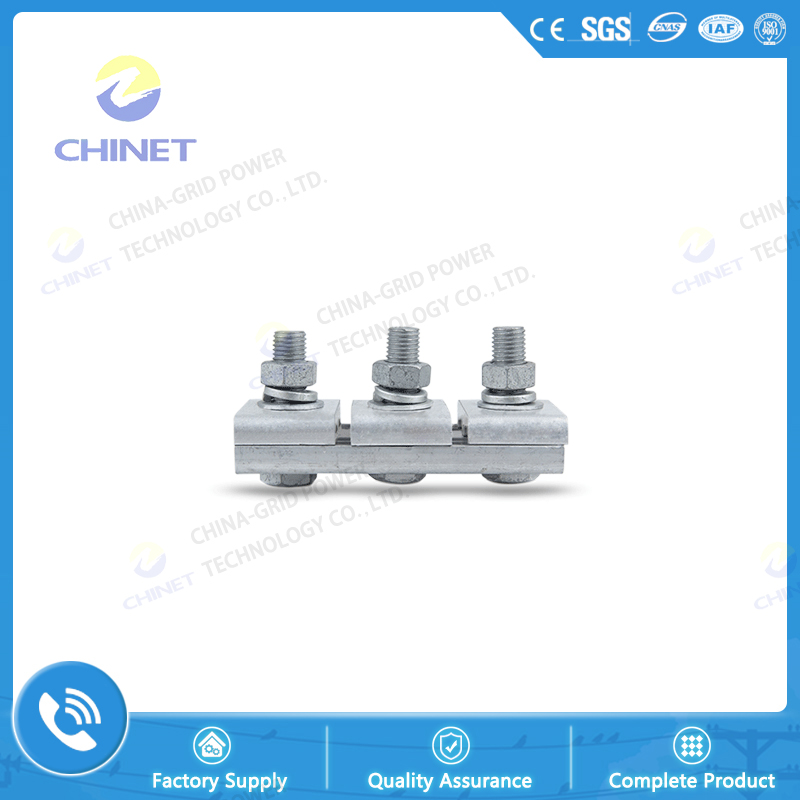

JB Parallel Groove Clamps for AAC & ACSR Conductor are suitable for connnect suspension insulators into a string and hang the string in tower or connect strain clamp and insulator string in the straight line tower.

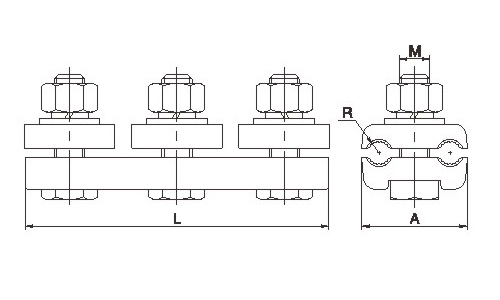

| Type | Applicable Conductor Range | Bolt |
Main Dimensions (mm) |
|||
| A | L | R | ||||
|
JB-0 | 16~25 | 2-M10*40 | 35 | 72 | 4 |
| JB-1 | 35~50 | 2-M12*45 | 46 | 80 | 5.5 | |
| JB-2 | 70~95 | 3-M12*50 | 50 | 108 | 7.5 | |
| JB-3 | 120~150 | 3-M16*60 | 62 | 140 | 9 | |
| JB-4 | 185~240 | 3-M16*65 | 71 | 144 | 11 | |
| JB-5 | 300~400 | 4-M20*85 | 90 | 200 | 14.5 | |
| JB-6 | 500~630 | 4-M20*95 | 110 | 230 | 18.5 | |
|
The body and keeper are made of aluminum alloy, other parts are made of hot dip galvanized steel. |
||||||
