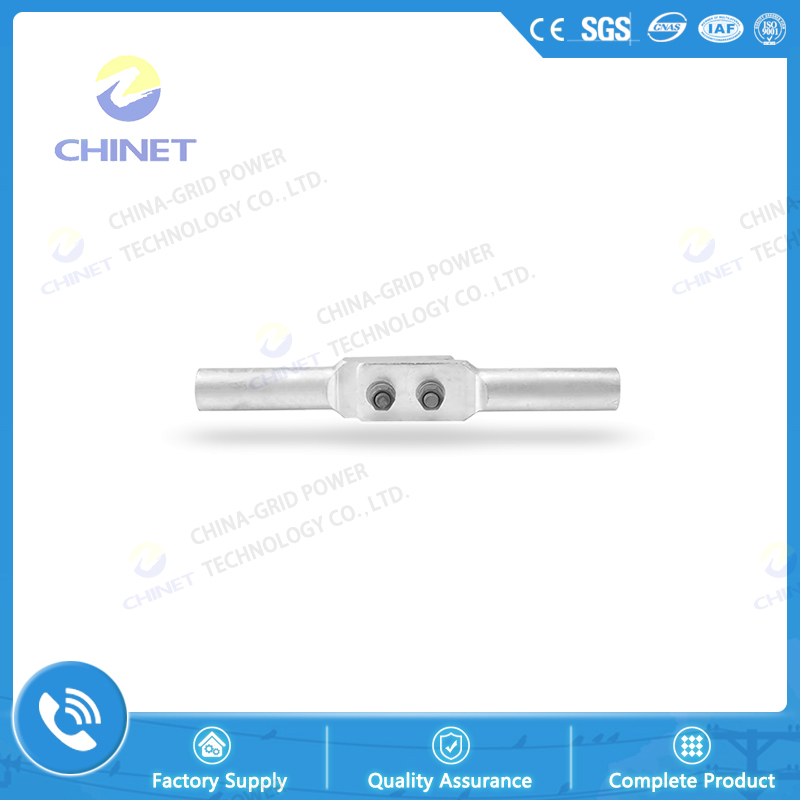

JYT type hydraulic pressure jumper connector is generally suitable for jumping-line connection with non-straight pole & tower on overhead electric transmission line.

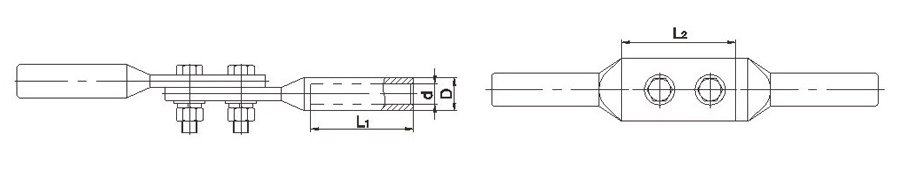

| Type | Applicable Conductor | Dimension (mm) | ||||
| Type | Outside Diameter (mm) | D | L1 | L2 | d | |
| JYT-35/6 | LGJ-35/6 | 8.16 | 18 | 60 | 70 | 9.7 |
| JYT-50/8 | LGJ-50/8 | 9.60 | 18 | 60 | 70 | 11.0 |
| JYT-70/10 | LGJ-70/10 | 11.40 | 22 | 70 | 70 | 13.0 |
| JYT-95/15 | LGJ-95/15 | 13.61 | 26 | 80 | 90 | 15.0 |
| JYT-120/7 | LGJ-120/7 | 14.50 | 26 | 80 | 90 | 16.0 |
| JYT-120/20 | LGJ-120/20 | 15.07 | 26 | 80 | 90 | 16.5 |
| JYT-150/8 | LGJ-150/8 | 16.00 | 30 | 90 | 90 | 17.5 |
| JYT-150/20 | LGJ-150/20 | 16.67 | 30 | 90 | 90 | 18.0 |
| JYT-150/25 | LGJ-150/25 | 17.10 | 30 | 90 | 90 | 18.5 |
| JYT-185/10 | LGJ-185/10 | 18.00 | 32 | 90 | 90 | 19.5 |
| JYT-185/25 | LGJ-185/25 | 18.90 | 32 | 90 | 90 | 20.5 |
| JYT-185/30 | LGJ-185/30 | 18.88 | 32 | 90 | 90 | 20.0 |
| JYT-185/45 | LGJ-185/45 | 19.60 | 34 | 90 | 90 | 21.5 |
|
||||||
