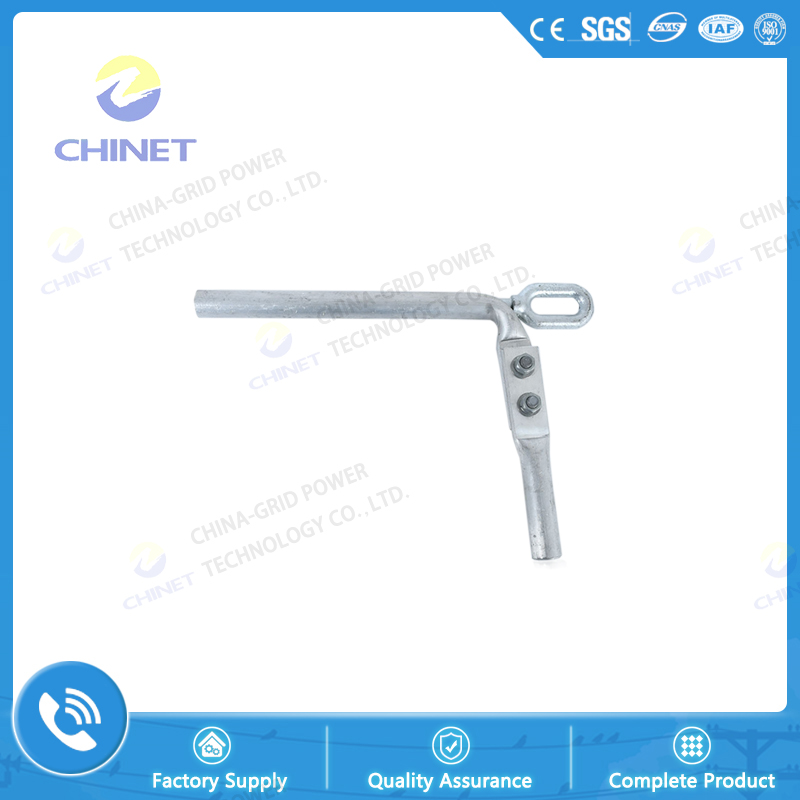

NY-BG type strain clamp used for aluminum-clad ACSR is used to fix & connect conductor onto the tension insulator string or the fittings on pole & tower through sustaining tensile force generated by the conductor.
It is made up of high-strength aluminum & steel materials, with clean surface & durable usage period; meanwhile it is easy for installation, free of hysteresis loss, low carbon & energy saving.
| Type | Applicable Conductor |
Dimension (mm) |
Grip (kN) |
|||||

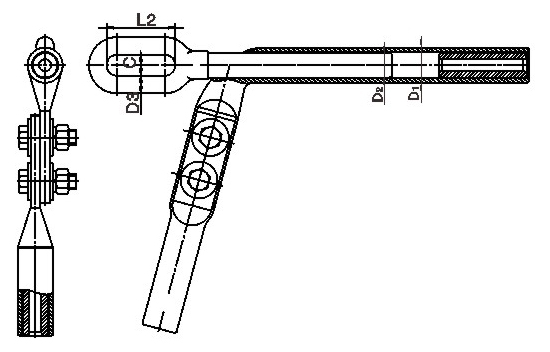

| Specifications | Outside Diameter | D1 | D2 | D3 | C | L2 | ||
| NY-35BG-20 | JLB20A-35 | 7.80 | 30 | 16 | 16 | 20 | 55 | 38.0 |
| NY-45BG-20 | JLB20A-45 | 8.70 | 32 | 18 | 16 | 20 | 55 | 53.0 |
| NY-50BG-20 | JLB20A-50 | 9.00 | 32 | 18 | 16 | 20 | 55 | 55.6 |
| NY-55BG-20 | JLB20A-55 | 9.60 | 32 | 20 | 16 | 20 | 55 | 64.5 |
| NY-65BG-20 | JLB20A-65 | 10.50 | 36 | 22 | 18 | 24 | 70 | 73.0 |
| NY-70BG-20 | JLB20A-70 | 11.00 | 36 | 22 | 18 | 24 | 70 | 77.5 |
| NY-80BG-20 | JLB20A-80 | 11.50 | 36 | 24 | 18 | 24 | 70 | 85.0 |
| NY-95BG-20 | JLB20A-95 | 12.48 | 36 | 24 | 20 | 26 | 78 | 96.0 |
| NY-100BG-20 | JLB20A-100 | 13.00 | 38 | 26 | 20 | 26 | 78 | 116.0 |
| NY-100BG-40 | JLB40-100 | 13.00 | 36 | 24 | 18 | 24 | 70 | 58.7 |
| NY-120BG-20 | JLB20A-120 | 14.25 | 42 | 30 | 22 | 26 | 78 | 138.9 |
| NY-120BG-40 | JLB40-120 | 14.25 | 36 | 24 | 18 | 24 | 70 | 71.5 |
| NY-150BG-20 | JLB20A-150 | 15.75 | 45 | 32 | 24 | 30 | 80 | 169.6 |
| NY-150BG-40 | JLB40-150 | 15.75 | 38 | 26 | 18 | 24 | 70 | 86.1 |
