The performance of JN15-12 high-voltage grounding switch complies with GB1985-89 《AC high-voltage isolating switch and grounding switch》 and IEC129 requirements. It is applicable to 12kV and below AC 50Hz power system. It can be used with various types of high-voltage switchgear as grounding. For protection.
Advanced design, reliable technical performance; simple structure, convenient installation and commissioning; fast separation and integration capabilities.
Use conditions:Altitude does not exceed 1000m; ambient air temperature: upper limit +40 °C: lower limit -10 °C
It is allowed to store and transport at 30 °C; the seismic intensity does not exceed 8 degrees; there is no flammable, explosive, severe dust, chemical corrosion and severe vibration.
Technology:| Project | Unit | Data | ||
| Rated voltage | KV | 12 | ||
| Rated short-time withstand current | KA | 31.5 | ||
| Rated short circuit duration | S | 4 | ||
| Rated short circuit closing current | KA | 80 | ||
| Rated peak withstand current | KA | 80 | ||
| Center distance between poles | mm | 150，210，230，250，275 | ||
| Rated insulation level | 1minPower frequency withstand voltage | KV | Ground、interphase/inter Pole | 42/48 75/85 |
|
Lightning impulse withstand voltage
|
||||

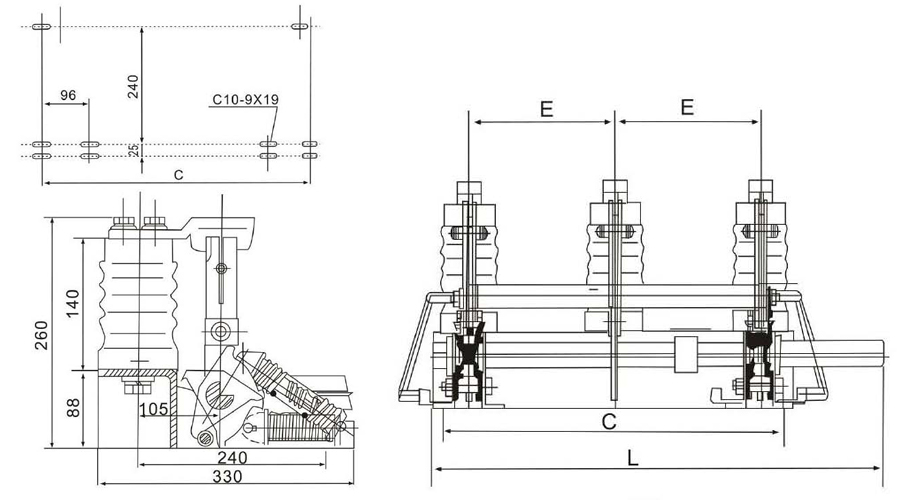

| Type | L | E | C |
| JN15-12/31.5-210 | 655 | 210 | 516 |
| JN15-12/31.5-230 | 710 | 230 | 556 |
| JN15-12/31.5-250 | 760 | 250 | 596 |
| JN15-12/31.5-275 | 810 | 275 | 646 |
