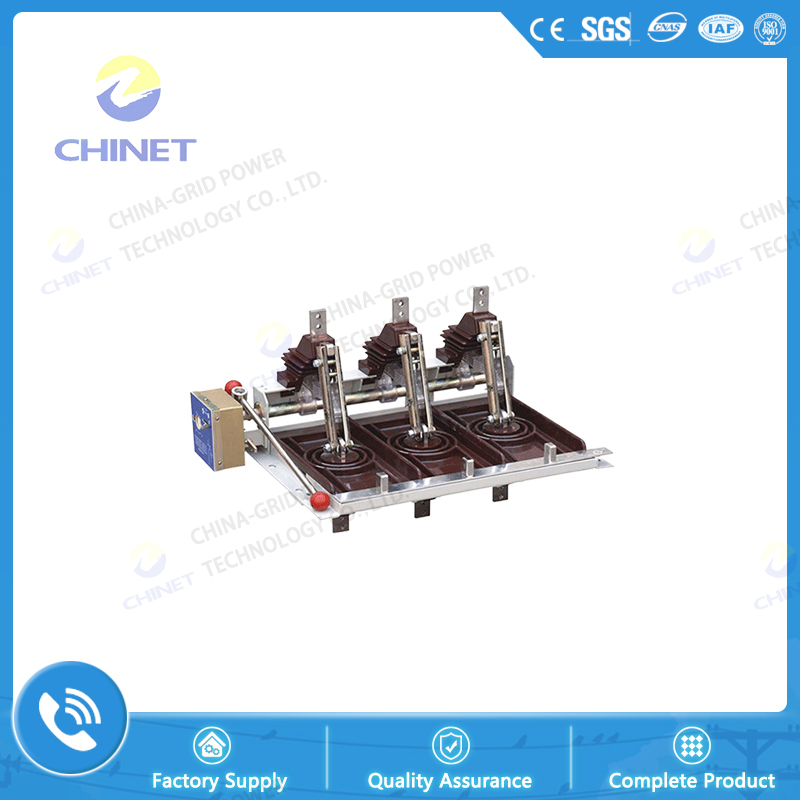

The GN38-12KV series indoor isolator switch is designed and manufactured to meet the needs of compact and compact development for fixed high voltage cabinets.

It has a three-station structure, fully insulated bottom plate; and is equipped with coaxial locking and perfect mechanical interlocking mechanism, which is compact and compact. It is the best optional switch for compact box switchgear.

Ambient air temperature: upper limit +40 ° C lower limit -25 ° C

Above 2000m above sea level

Relative temperature: daily average is not more than 95%, monthly average is not more than 90%

The surrounding air should be free from corrosive or flammable gases, water vapor, etc., without frequent and severe vibrations

Serial	Project		Unit	Parameter
1	Rated voltage		KV	12
2	Rated frequency		HZ	50
3	Rated current		A	630-1250
4	Rated thermal stability current (4S)		KA	25-31.5
5	Rated dynamic current		KA	63-80
6	Rated insulation level	1 min Power frequency withstand voltage	KV	ground and phase 42; Isolation fracture 48
		Lightning impulse withstand voltage		ground and phase 75; Isolation fracture 85
