NGC drop-out fuses are gas-jet type distribution network fuses, which provide excellent fault current or over-voltage protection in transformers, capacitors, cables and lines in the functional switch system.

This type of drop-out fuse is made up of superior ceramics insulators and finely machined parts. It has beautiful appearance, reasonable structure, safety and reliability, and is easy to use.

Type	Rated voltage (kV)	Rated current (A)	Breaking current (kA)	impulse voltage (BIL)	Power frequency withstand voltage (kV)	Creepage distance (mm)	Weight (kg)	Outline size
NGC-12/100	12	100	8	110	42	330	7.5	49×36×11
NGC-12F/100								57×44×14
NGC-12/100	12	200	12.5	110	42	330	8	49×36×11
NGC-12F/100								57×44×14

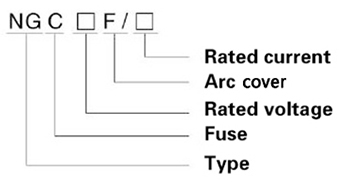

Model: F means with arc cover

a. The altitude does not exceed 1000 meters

b. There is no conductive dust and non-corrosive flammable and explosive gas in the surrounding air environment

c. The wind pressure does not exceed 100Pa (equivalent to wind speed 34m / S)

d. The earthquake intensity does not exceed 8

e. The annual temperature difference change ratio is within ±40 °C
