Overview

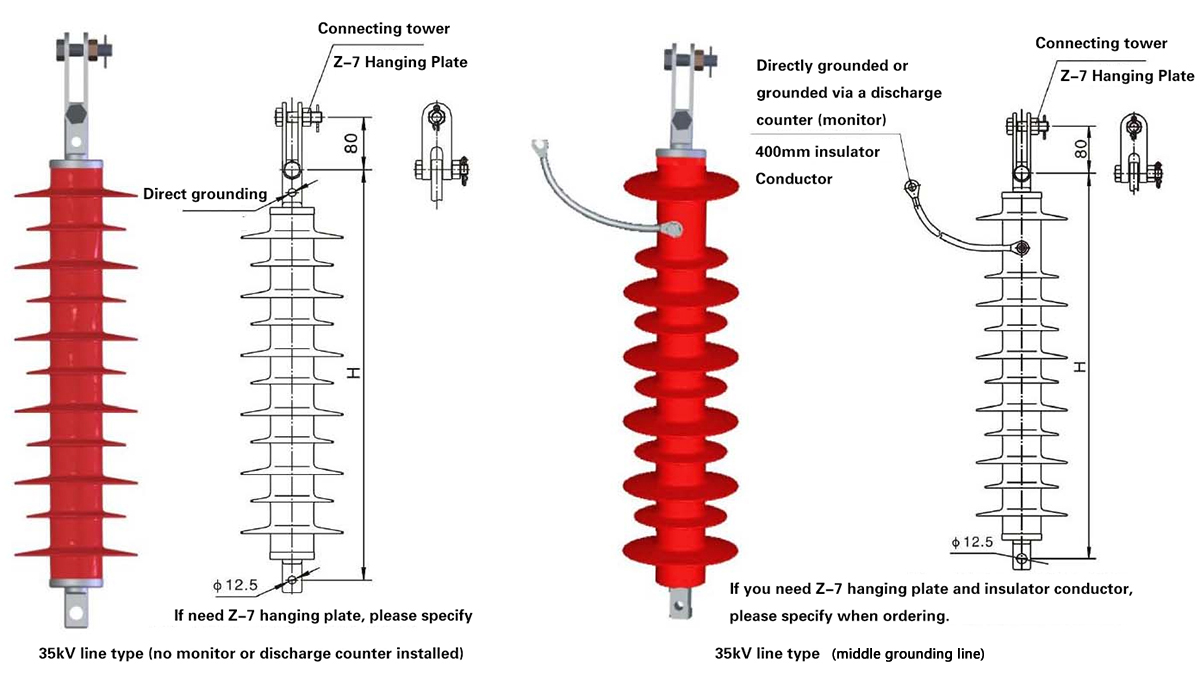

35KV line type:

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Arrester Hight
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WX-51/134	35	51	40．8	73	154	134	114	400	100	625
YH5WX-54/134	35	54	43．2	77	154	134	114	400	100	625
YH5WX-54/142	35	54	43．2	77	163	142	121	400	100	625
YH5WX-57/170	35	57	45．6	80	195	170	145	400	100	667
YH5WX-51/134G	35	51	40．8	73	154	134	114	400	100	715

35KV line type (middle grounding line):

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Arrester Hight
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WX1-51/134E	35	51	40．8	73	154	134	114	400	100	660
YH5WX1-54/134E	35	54	43．2	77	154	134	114	400	100	660
YH5WX1-54/142E	35	54	43．2	77	163	142	121	400	100	660
YH5WX1-57/170E	35	57	45．6	80	195	170	145	400	100	700

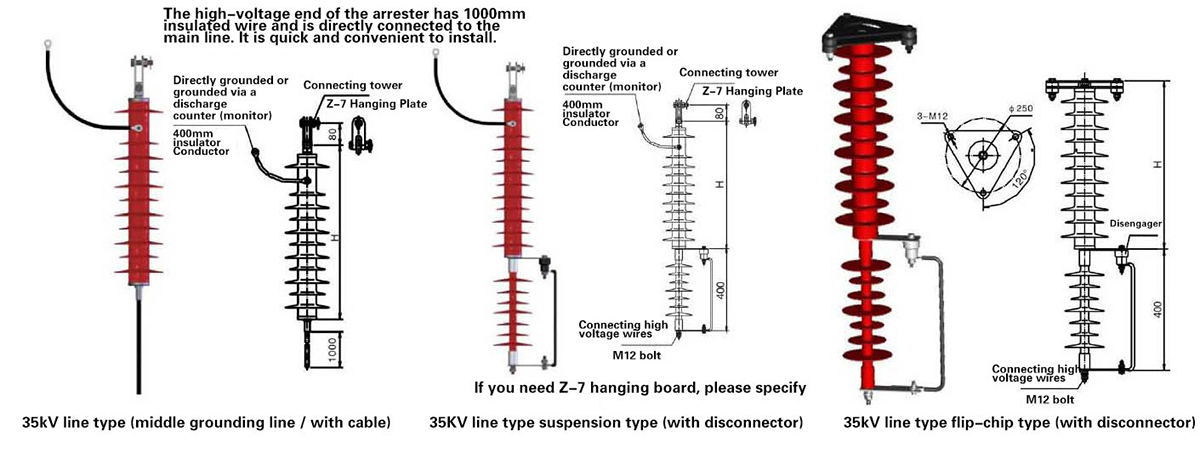

35KV line type (middle grounding line / with cable):

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Arrester Hight
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WX2-51/134EJ	35	51	40.8	73	154	134	114	400	100	630
YH5WX2-54/134EJ	35	54	43.2	77	154	134	114	400	100	630
YH5WX2-54/142EJ	35	54	43.2	77	163	142	121	400	100	630
YH5WX2-57/170EJ	35	57	45.6	80	195	170	145	400	100	670

35KV line type suspension type (with disconnector):

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Arrester Hight
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WX1-51/134TL	35	51	40.8	73	154	134	114	400	100	630
YH5WX1-54/134TL	35	54	43.2	77	154	134	114	400	100	630
YH5WX1-54/142TL	35	54	43.2	77	163	142	121	400	100	630
YH5WX1-57/170TL	35	57	45.6	80	195	170	145	400	100	670

35kV line type flip-chip type (with disconnector):

MOA Tape	Sys R.V	MOA R.V	MCOV	DC voltage (U1mA)	1/10μs Steep Current Impulse	8/20μs Lightning Current Impulse	30/60μs Switching Current Impulse	2ms Rectangular Current Impulse	4/10μs High Current Impulse	Arrester Hight
MOA Tape	kV(r.m.s)			≮kV	≯kV			A	kA	mm
YH5WX2-51/134TL-D	35	51	40．8	73	154	134	114	400	100	560
YH5WX2-54/134TL-D	35	54	43．2	77	154	134	114	400	100	560
YH5WX2-54/142TL-D	35	54	43．2	77	163	142	121	400	100	560
YH5WX2-57/170TL-D	35	57	45．6	80	195	170	145	400	100	600
