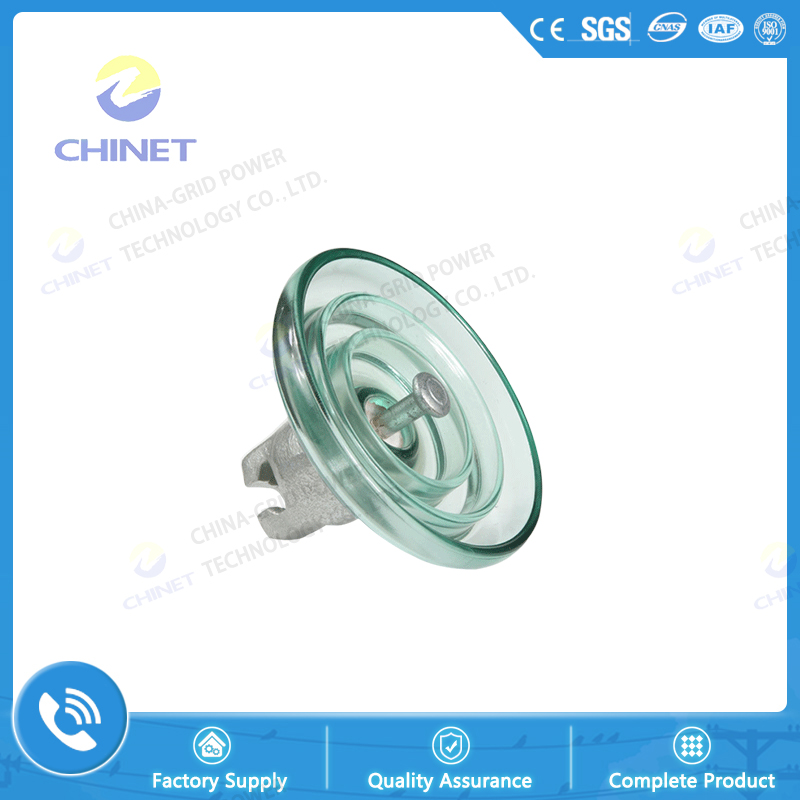

Description:
Using glass insulation can cancel the regular preventive test of the insulator during operation, because every damage of toughened glass will cause damage to the insulator, which is easy to be found by the operators during the line inspection
The raw materials used to make glass insulator are more stable than the raw materials used to make electric porcelain in terms of their own components, creating good conditions for stabilizing the electrical and mechanical properties of glass
Excellent mechanical properties, good anti flashover performance, excellent corrosion resistance, good aging resistance, good structural stability, high efficiency and light weight.

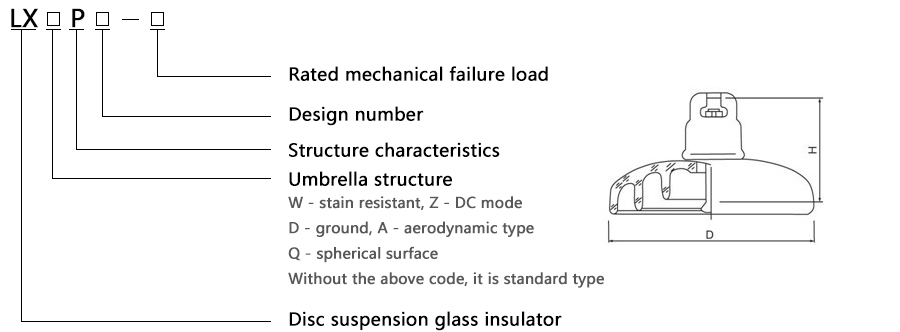

Type
|
Similar product model
|
IEC Standard Insulator
|
Min Mechanical Failure Load KN
|
Structural height
(mm)
|
Nominal diameter
|
Nominal creepage distance
(mm)
|
Connection mark
|
Power Frequency Wet Tolerance Voltage 5 Chips/per
|
Lightning Full Wave Shock Dry Tolerance Voltage 5 Chips/Monolithic
|
Power Frequency Breakdown Voltage
|
Insulator monolithic weight (kg)
|
LXWP3-100
|
LXHY3-100
|
U100B/146
|
100kN
|
146mm
|
260mm
|
400mm
|
16W
|
160kV/45 kV
|
440 kV/110 kV
|
130 kV
|
5.2
|
LXWP4-100
|
LXHY4-100
|
U100B/146
|
100kN
|
146mm
|
280mm
|
450mm
|
16W
|
160kV/50 kV
|
440 kV/125 kV
|
130 kV
|
5.5
|
LXWP6-100
|
LXHY6-100
|
U100B/146
|
100kN
|
146mm
|
320mm
|
550mm
|
16W
|
220kV/55 kV
|
520 kV/140 kV
|
130 kV
|
9.2
|
LXP2-120
|
LXY2-120
|
U120B/127
|
120kN
|
127mm
|
255mm
|
320mm
|
16W
|
150kV/40 kV
|
420 kV/100 kV
|
130 kV
|
4.0
|
LXP-120
|
LXY-120
|
U120B/146
|
120kN
|
146mm
|
255mm
|
320mm
|
16W
|
150kV/40 kV
|
420 kV/100 kV
|
130 kV
|
4.2
|
LXWP3-120
|
LXHY3-120
|
U120B/146
|
120kN
|
146mm
|
260mm
|
400mm
|
16W
|
160kV/45 kV
|
440 kV/110 kV
|
130 kV
|
5.2
|
LXWP4-120
|
LXHY4-120
|
U120B/146
|
120kN
|
146mm
|
280mm
|
450mm
|
16W
|
160kV/50 kV
|
440 kV/125 kV
|
130 kV
|
5.5
|
LXWP6-120
|
LXHY6-120
|
U120B/146
|
120kN
|
146mm
|
320mm
|
550mm
|
16W
|
220kV/55 kV
|
520 kV/140 kV
|
130 kV
|
9.2
|
LXP4-160
|
LXY4-160
|
U160B/146
|
160KN
|
146mm
|
280mm
|
400mm
|
20w
|
180kV/45kV
|
450kV/110kV
|
130kV
|
6.1
|
LXP3-160
|
LXY3-160
|
U160B/155
|
160KN
|
155mm
|
280mm
|
400mm
|
20w
|
180kV/45kV
|
450kV/110kV
|
130kV
|
6.3
|
LXP-160
|
LXY-160
|
U160B/170
|
160KN
|
170mm
|
280mm
|
400mm
|
20w
|
180kV/45kV
|
450kV/110kV
|
130kV
|
6.5
|
LXP2-160
|
LXY2-160
|
U160B/170
|
160KN
|
170mm
|
280mm
|
450mm
|
20w
|
180kV/45kV
|
450kV/110kV
|
130kV
|
7.1
|
LXWP7-160
|
LXHY7-160
|
U160BP/146
|
160KN
|
146mm
|
320mm
|
550mm
|
20R
|
200kV/55kV
|
520kV/140kV
|
130kV
|
8.8
|
LXWP6-160
|
LXHY6-160
|
U160BP/155
|
160KN
|
155mm
|
320mm
|
550mm
|
20R
|
200kV/55kV
|
520kV/140kV
|
130kV
|
9.0
|
LXWP5-160
|
LXHY5-160
|
U160BP/170
|
160KN
|
170mm
|
320mm
|
550mm
|
20R
|
200kV/55kV
|
520kV/140kV
|
130kV
|
9.2
|
LXP2-70
|
LXY2-70
|
U70B/127
|
70kN
|
127mm
|
255mm
|
320mm
|
16W
|
150kV/40kV
|
420kV/100kV
|
130kV
|
3.5
|
LXP1-70
|
LXY1-70
|
U70B/146
|
70kN
|
146mm
|
255mm
|
320mm
|
16W
|
150kV/40kV
|
420kV/100kV
|
130kV
|
3.6
|
LXP3-70
|
LXY3-70
|
U70B/140
|
70kN
|
140mm
|
255mm
|
320mm
|
16W
|
150kV/40kV
|
420kV/100kV
|
130kV
|
3.6
|
LXWP4-70
|
LXHY4-70
|
U70B/146
|
70kN
|
146mm
|
255mm
|
400mm
|
16W
|
160Kv/45kV
|
440kV/110kV
|
130kV
|
4.7
|
LXWP5-70
|
LXHY5-70
|
U70B/146
|
70kN
|
146mm
|
280mm
|
450mm
|
16W
|
160Kv/45kV
|
440kV/125kV
|
130kV
|
5.5
|
LXWP6-70
|
LXHY6-70
|
U70B/146
|
70kN
|
146mm
|
320mm
|
550mm
|
16W
|
200kV/55kV
|
520kV/140kV
|
130kV
|
9.2
|
LXP2-100
|
LXY2-100
|
U100B/127
|
100kN
|
127mm
|
255mm
|
320mm
|
16W
|
150kV/40kV
|
420kV/100kV
|
130kV
|
4.0
|
LXP-100
|
LXY-100
|
U100B/146
|
100kN
|
146mm
|
255mm
|
320mm
|
16W
|
150kV/40kV
|
420kV/100kV
|
130kV
|
4.0
|
