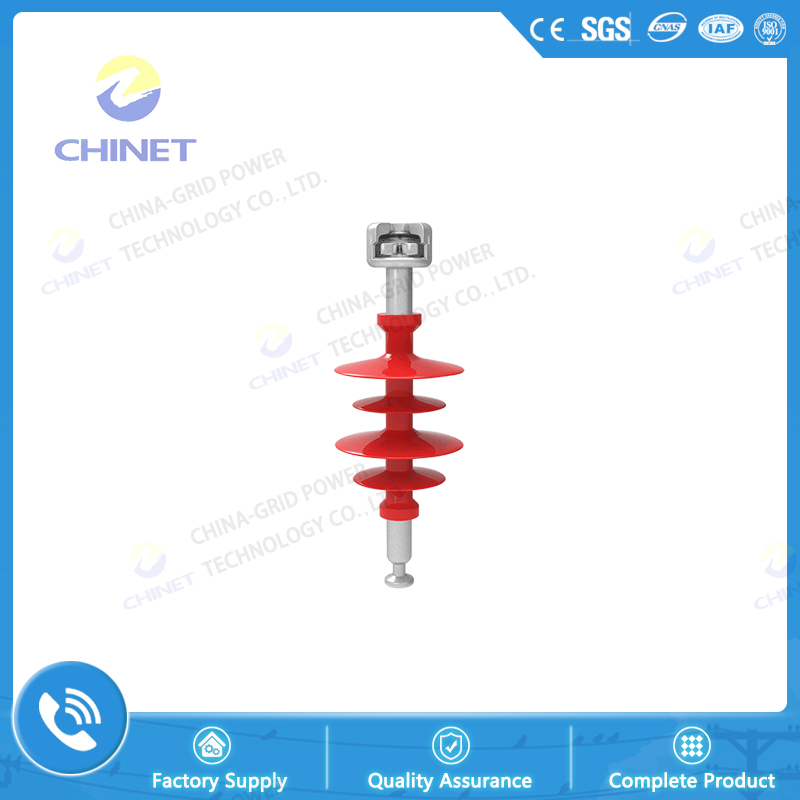

FQBNJH Type High Voltage Electrical Traction Substation Composite Insulator

Classification:Railway insulator

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Features:

Composite insulator has become a large number of power equipment used in power system. In addition to its excellent anti pollution performance, composite insulator has many unique advantages, such as light weight, small size, not easy to break, convenient transportation and installation, small maintenance workload, good cost performance, etc.

it has been widely used in transmission lines, power plants, power stations and electrified railways, and is the best alternative to porcelain and glass insulator Choice

Type Rated voltage
kV
Rated bending load
KN
Structure height
(mm)
Insulation distance
(mm)
Min nominal creepage distance
(mm)
Lightning full wave impulse withstand voltage
kV
Power frequency dry withstand voltage
kV
Power frequency temperature withstand voltage
kV
FQBN-25/4-JH 25 100 700 500 1400 300 180 150 T-X
FQBN-25/8-JH 25 100 800 600 1850 360 210 150 T-X
