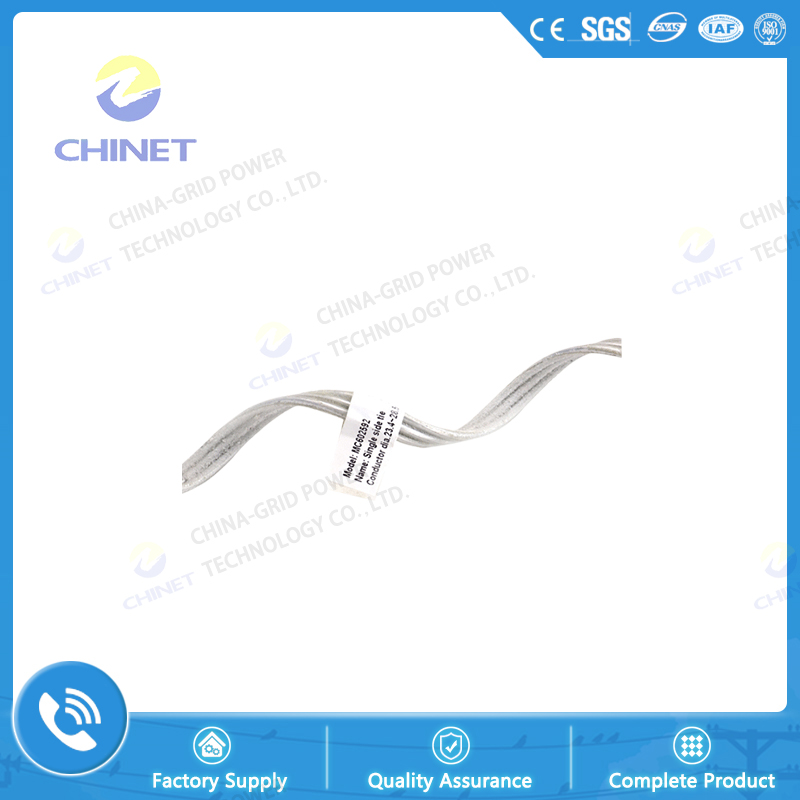

Aluminum Clad Steel Preformed Tie Wire for P Type Pin Insulator Bare Wire

Classification：Preformed Line Tie

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

P-6 Pin Insulator Preformed aluminum-clad steel distribution tie line:

Model (bare conductor)	Model (insulated conductor)	diameter range（mm）		Parameter		Applicable to international conductor
Model (bare conductor)	Model (insulated conductor)	diameter range（mm）		Color code	Number of roots per group	LJ	Ordinary insulation 10KV	Thin insulation 10KV
DT6100	SDT6200	4.83	5.46	Blue	2	16		10
DT6101	SDT6201	5.47	6.2	Brown	2			16
DT6102	SDT6202	6.21	7.04	Orange	2	25
DT6103	SDT6203	7.05	8	Purple	2	35
DT6104	SDT6204	8.01	9.07	Red	2	50
DT6105	SDT6205	9.08	10.29	Yellow	2
DT6106	SDT6206	10.3	11.66	Blue	2	70
DT6107	SDT6207	11.67	13.21	Orange	2	95	10、16
DT6108	SDT6208	13.22	14.94	Red	2	120		25
DT6109	SDT6209	14.95	16.89	Purple	2	150	25、35	35、50
DT6110	SDT6210	16.9	19.18	Brown	2	185、210	50	70
DT6111	SDT6211	19.2	21.79	Red	2	240	70、95	95、120
DT6112	SDT6212	21.82	24.59	Blue	2	300	120、150	150、185
DT6113	SDT6213	24.61	27.84	Green	2	400	185	240
Suitable for right-handed bare conductors and insulated conductors

P-10 Pin Insulator Preformed aluminum-clad steel distribution tie line:

Model (bare conductor)	Model (insulated conductor)	diameter range（mm）		Parameter		Applicable to international conductor
Model (bare conductor)	Model (insulated conductor)	diameter range（mm）		Color code	Number of roots per group	LJ	Ordinary insulation 10KV	Thin insulation 10KV
DT10100	SDT10200	4.83	5.46	Blue	2	16		10
DT10101	SDT10201	5.47	6.2	Brown	2			16
DT10102	SDT10202	6.21	7.04	Orange	2	25
DT10103	SDT10203	7.05	8	Purple	2	35
DT10104	SDT10204	8.01	9.07	Red	2	50
DT10105	SDT10205	9.08	10.29	Yellow	2
DT10106	SDT10206	10.3	11.66	Blue	2	70
DT10107	SDT10207	11.67	13.21	Orange	2	95	10、16
DT10108	SDT10208	13.22	14.94	Red	2	120		25
DT10109	SDT10209	14.95	16.89	Purple	2	150	25、35	35、50
DT10110	SDT10210	16.9	19.18	Brown	2	185、210	50	70
DT10111	SDT10211	19.2	21.79	Red	2	240	70、95	95、120
DT10112	SDT10212	21.82	24.59	Blue	2	300	120、150	150、185
DT10113	SDT10213	24.61	27.84	Green	2	400	185	240
DT10114	SDT10214	27.85	31.5	Yellow	2
DT10115	SDT10215	31.51	35.61	Orange	2
Suitable for right-handed bare conductors and insulated conductors

P-15 Pin Insulator Preformed aluminum-clad steel distribution tie line:

Model (bare conductor)	Model (insulated conductor)	diameter range （mm）		Parameter		Applicable to international conductor
Model (bare conductor)	Model (insulated conductor)	diameter range （mm）		Color code	Number of roots per group	LJ	Ordinary insulation 10KV	Thin insulation 10KV
DT20100	SDT20200	4.83	5.46	Blue	2	16		10
DT20101	SDT20201	5.47	6.2	Brown	2			16
DT20102	SDT20202	6.21	7.04	Orange	2	25
DT20103	SDT20203	7.05	8	Purple	2	35
DT20104	SDT20204	8.01	9.07	Red	2	50
DT20105	SDT20205	9.08	10.29	Yellow	2
DT20106	SDT20206	10.3	11.66	Blue	2	70
DT20107	SDT20207	11.67	13.21	Orange	2	95	10、16
DT20108	SDT20208	13.22	14.94	Red	2	120		25
DT20109	SDT20209	14.95	16.89	Purple	2	150	25、35	35、50
DT20110	SDT20210	16.9	19.18	Brown	2	185、210	50	70
DT20111	SDT20211	19.2	21.79	Red	2	240	70、95	95、120
DT20112	SDT20212	21.82	24.59	Blue	2	300	120、150	150、185
DT20113	SDT20213	24.61	27.84	Green	2	400	185	240
DT20114	SDT20214	27.85	31.49	Brown	2
Suitable for right-handed bare conductors and insulated conductors

P-20 Pin Insulator Preformed aluminum-clad steel distribution tie line:

Model (bare conductor)	Model (insulated conductor)	diameter range（mm）		Parameter		Applicable to international conductor
Model (bare conductor)	Model (insulated conductor)	diameter range（mm）		Color code	Number of roots per group	LJ	Ordinary insulation 10KV	Thin insulation 10KV
DT20100	SDT20200	4.83	5.46	Blue	2	16		10
DT20101	SDT20201	5.47	6.2	Brown	2			16
DT20102	SDT20202	6.21	7.04	Orange	2	25
DT20103	SDT20203	7.05	8	Purple	2	35
DT20104	SDT20204	8.01	9.07	Red	2	50
DT20105	SDT20205	9.08	10.29	Yellow	2
DT20106	SDT20206	10.3	11.66	Blue	2	70
DT20107	SDT20207	11.67	13.21	Orange	2	95	10、16
DT20108	SDT20208	13.22	14.94	Red	2	120		25
DT20109	SDT20209	14.95	16.89	Purple	2	150	25、35	35、50
DT20110	SDT20210	16.9	19.18	Brown	2	185、210	50	70
DT20111	SDT20211	19.2	21.79	Red	2	240	70、95	95、120
DT20112	SDT20212	21.82	24.59	Blue	2	300	120、150	150、185
DT20113	SDT20213	24.61	27.84	Green	2	400	185	240
DT20114	SDT20214	27.85	31.5	Yellow	2

Safe Questions:

For specific application products, only one-time use. Note: It is forbidden to use or modify this product again under any circumstances;

This product is operated by trained personnel and is prohibited from operating this product by unfamiliar or untrained personnel of this product;

When using this product on a live line, care should be taken to prevent accidental electric shock;

In order to ensure performance and personal safety, the right size distribution cable should be selected before application;

The distribution tie is a precision device. In order to ensure the performance, the power distribution wire should be stored in the sealed box before use, and pay attention to light handling.
