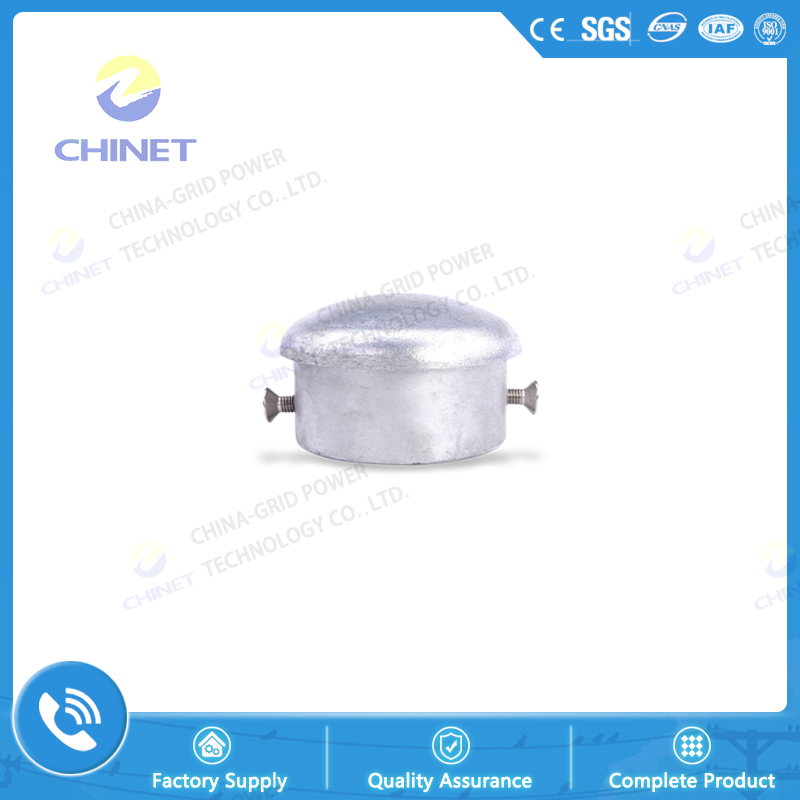

MGF Tube Bus-bar Head Terminal Ball

Classification:Station Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Specifications:

Type

Application bus specification

Main Dimensions (mm)

D

H

SR

Φ

M

MGF-50

Φ 50/45

45

0

50

50

8

MGF-60

Φ 60/54

54

10

65

60

MGF-70

Φ 70/64

64

12.5

70

70

MGF-80

Φ 80/72

72

12.5

70

80

MGF-90

Φ 90/80

80

15

80

90

MGF-100

Φ 100/90

90

17.5

90

100

MGF-110

Φ 110/100

100

17.5

100

110

10

MGF-120

Φ 120/110

110

17.5

120

120

MGF-130

Φ 130/116

116

17.5

120

130

MGF-150

Φ 150/136

136

20

150

150

MGF-170

Φ 170/156

156

22.5

160

170

MGF-200

Φ 200/180

180

25

170

200

12

MGF-250

Φ 250/230

230

25

180

250


Notes:

The body is made of aluminum.

When the inner diameter of the pipe bus used by the user is different from the above size, please specify when ordering.
