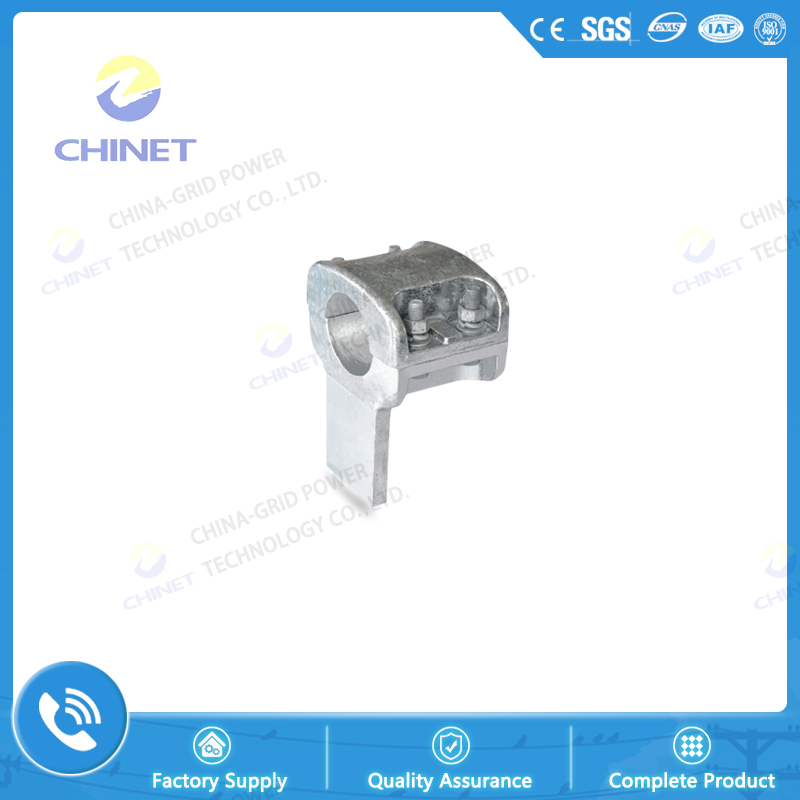

MGT-C Tube Bus-bar Vertical Terminal T-Connector Fittings

Classification:Station Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Specifications :

Type

Application bus specification

Main Dimensions (mm)

Φ

A

L

B

MGT-50C

Φ 50/45

50

60

75

14

MGT-60C

Φ 60/54

60

60

75

14

MGT-70C

Φ 70/64

70

80

85

16

MGT-80C

Φ 80/72

80

80

85

16

MGT-90C

Φ 90/80

90

100

105

18

MGT-100C

Φ 100/90

100

100

105

18

MGT-110C

Φ 110/100

110

100

105

18

MGT-120C

Φ 120/110

120

100

105

18

MGT-130C

Φ 130/116

130

125

130

20

MGT-150C

Φ 150/136

150

125

130

20

MGT-170C

Φ 170/156

170

150

160

22

MGT-200C

Φ 200/180

200

160

170

22

MGT-250C

Φ 250/230

250

170

180

24


Notes:

The main body and gland are made of aluminum, and the rest are hot-dip galvanized steel parts.
