Specifications:
|
Type |
Application Bus |
Main Dimensions (mm) |
Legend |
Fit Size |
|||
|
Width (mm) |
Number(mm) |
H |
L1 |
L2 |
|||
|
MWL-101 |
63 |
1 |
82 |
140 |
60 |

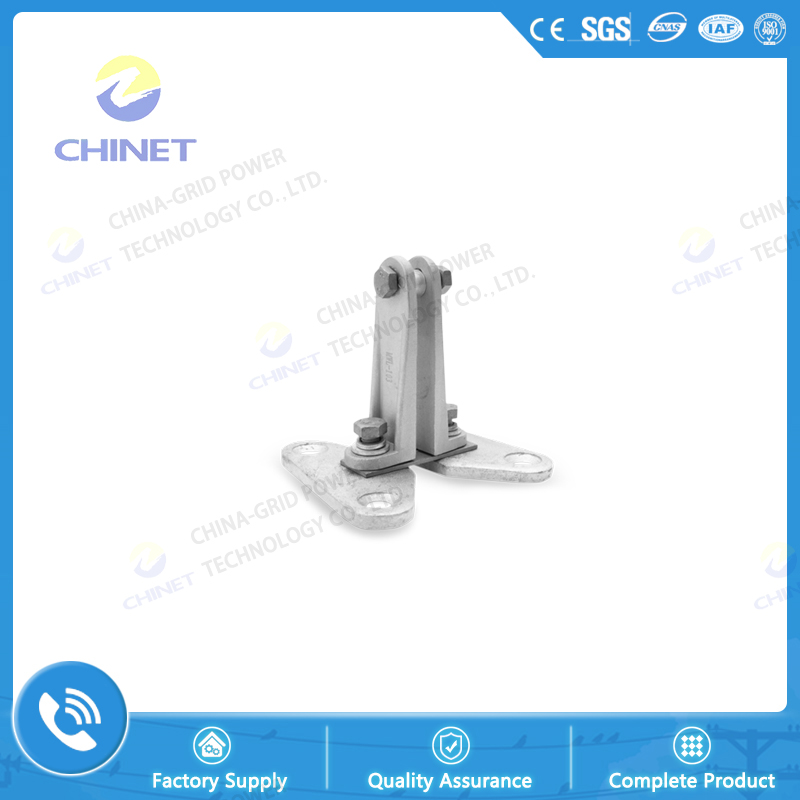

IMG 1 |
FZSW4-12/8 FZSW4-24/8 FZSW4-40.5/8 |
|
MWL-102 |
80 |
100 |
|||||
|
MWL-103 |
100 |
120 |
|||||
|
MWL-104 |
125 |
145 |
|||||
|
MWL-201 |
63 |
2 |
82 |
140 |
83 |
||
|
MWL-202 |
80 |
100 |
|||||
|
MWL-203 |
100 |
120 |
|||||
|
MWL-204 |
125 |
145 |
|||||
|
MWL-301 |
63 |
3 |
82 |
140 |
100 |
||
|
MWL-302 |
80 |
100 |
|||||
|
MWL-303 |
100 |
120 |
|||||
|
MWL-304 |
125 |
145 |
|||||
|
MWL-105 |
63 |
1 |
82 |
90 |
60 |
IMG 2 |
FZSW4-12/4-2 x M8 FZSW2-35/6-2 x M8 |
|
MWL-106 |
80 |
100 |
|||||
|
MWL-107 |
100 |
120 |
|||||
|
MWL-108 |
125 |
145 |
|||||
|
MWL-205 |
63 |
2 |
82 |
113 |
83 |
||
|
MWL-206 |
80 |
100 |
|||||
|
MWL-207 |
100 |
120 |
|||||
|
MWL-208 |
125 |
145 |
|||||
|
MWL-305 |
63 |
3 |
82 |
130 |
100 |
||
|
MWL-306 |
80 |
100 |
|||||
|
MWL-307 |
100 |
120 |
|||||
|
MWL-308 |
125 |
145 |
|||||
Notes:
The upper cover and partition are aluminum alloy parts, and the rest are hot-dip galvanized steel parts.
When the user needs the supporting post insulator hole distance is different from the above, please specify when ordering.
When selecting the type, when applying the bus-bar, please add J before the model.
