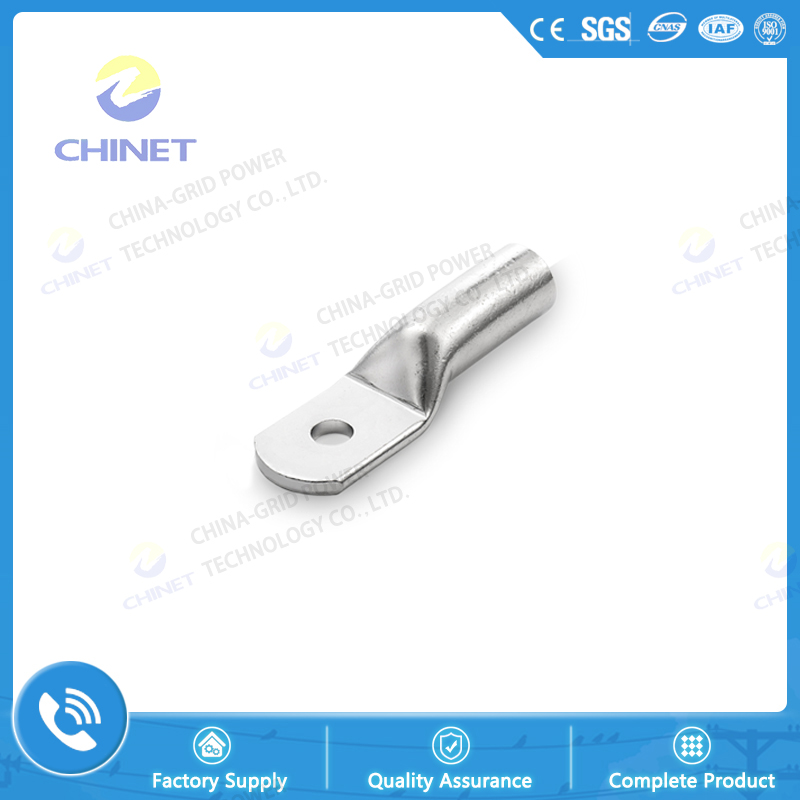

DG Type Connector Cable Lug Terminal for Steel Stranded Wire Conductor

Classification:Cable Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Specifications:

Type

Main Dimensions (mm)

D

d

A

L2

L

Φ

DG-35

16

8.5

20.5

30

90

10.5

DG-50

18

9.7

23.5

34

105

10.5

DG-55

22

10.3

27.5

36

110

12.5

DG-70

22

11.7

28.5

36

110

12.5

DG-80

24

12.2

31.0

38

115

12.5

DG-100

26

13.7

33.5

40

120

14.5

DG-120

28

14.7

36.0

42

125

14.5

DG-135

30

15.7

39.0

45

130

17.0

DG-150

32

16.7

41.5

48

135

17.0



Note:

The DG terminal is made of steel pipe, and its surface is galvanized and anticorrosive. It is suitable for electrical connection of steel strand.
