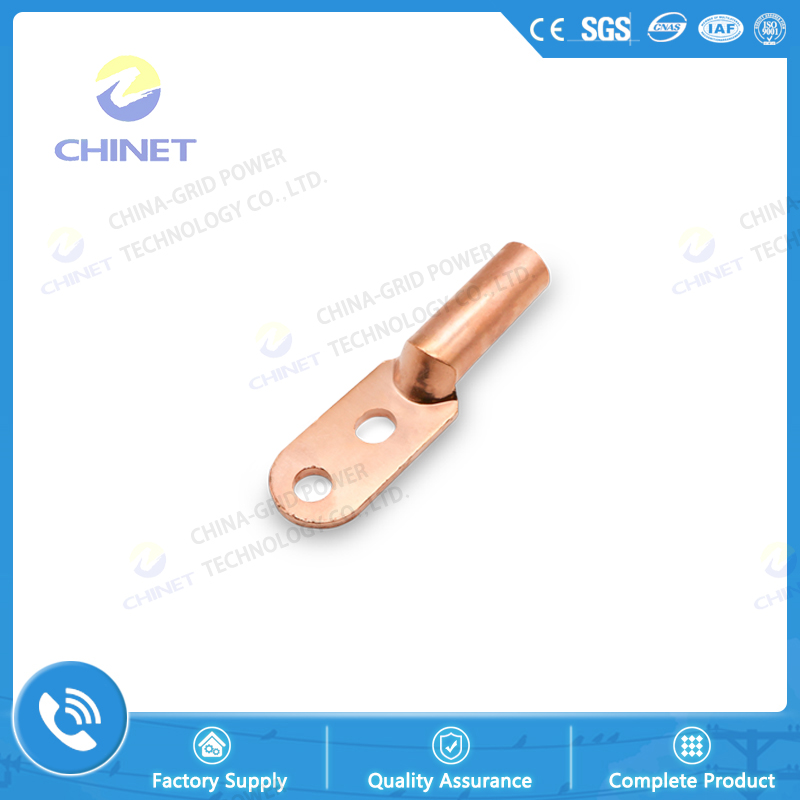

DTL2 RoundHeadSpecifications:
|
Type |
Main Dimensions (mm) |
|||||||
|
D |
d |
L1 |
L |
A |
L2 |
L3 |
Φ |
|
|
DTL2-35 |
12 |
8.5 |
36 |
100 |
22 |
50 |
20 |
10.5 |
|
DTL2-50 |
14 |
9.8 |
40 |
106 |
22 |
51 |
20 |
10.5 |
|
DTL2-70 |
16 |
11.5 |
44 |
118 |
28 |
58 |
25 |
10.5 |
|
DTL2-95 |
18 |
13.5 |
47 |
126 |
28 |
59 |
25 |
10.5 |
|
DTL2-120 |
20 |
15 |
49 |
138 |
34 |
65 |
30 |
12.5 |
|
DTL2-150 |
22 |
16.5 |
52 |
140 |
34 |
65 |
30 |
12.5 |
|
DTL2-185 |
25 |
18.5 |
56 |
152 |
40 |
71 |
35 |
12.5 |
|
DTL2-240 |
27 |
20.5 |
60 |
158 |
40 |
71 |
35 |
12.5 |
|
DTL2-300 |
30 |
23 |
62 |
180 |
50 |
85 |
40 |
14.5 |
|
DTL2-400 |
34 |
26 |
65 |
185 |
50 |
85 |
40 |
14.5 |
|
DTL2-500 |
38 |
29 |
75 |
197 |
50 |
85 |
40 |
14.5 |
DTL2 Square Head Specifications:
|
Type |
Main Dimensions (mm) |
|||||
|
D |
d |
L1 |
L |
A |
L2 |
|
|
DTL2-35F |
14 |
8.5 |
37 |
111 |
22 |
60 |
|
DTL2-50F |
16 |
9.8 |
42 |
120 |
22 |
60 |
|
DTL2-70F |
18 |
11.5 |
47 |
127 |
28 |
65 |
|
DTL2-95F |
20 |
13.5 |
50 |
135 |
28 |
65 |
|
DTL2-120F |
22 |
15 |
52 |
137 |
34 |
65 |
|
DTL2-150F |
25 |
16.5 |
55 |
143 |
34 |
65 |
|
DTL2-185F |
27 |
18.5 |
58 |
149 |
40 |
66 |
|
DTL2-240F |
30 |
21 |
60 |
153 |
40 |
66 |
|
DTL2-300F |
30 |
23 |
65 |
173 |
50 |
80 |
|
DTL2-400F |
34 |
26 |
65 |
180 |
50 |
80 |
|
DTL2-500F |
38 |
30 |
70 |
190 |
50 |
80 |
Note:
Square head double hole copper (copper aluminum) terminal is mainly used with double hole pole clamp
