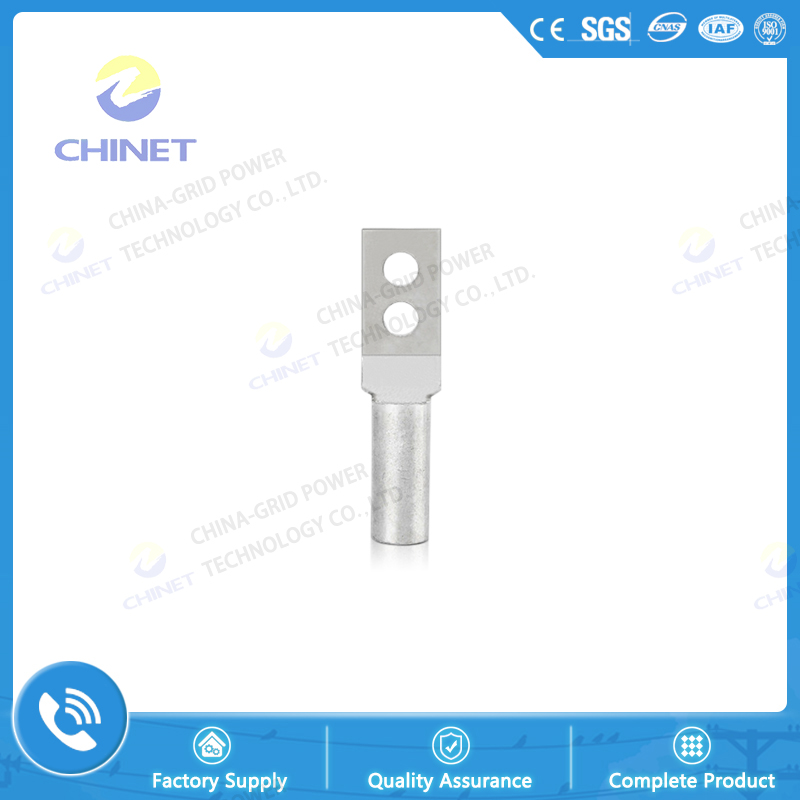

DTL2FQ Type Brazing Square Double Holes Copper Aluminum Cable Lug Terminal

Classification：Cable Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Specifications:

Type	Main Dimensions (mm)
Type	d	D	L	L1	A
DTL2-35FQ	8.5	16	117	40	22
DTL2-50FQ	9.8	16	118	42	22
DTL2-70FQ	11.5	18	113	48	28
DTL2-95FQ	13.5	21	144	52	28
DTL2-120FQ	15	23	148	53	34
DTL2-150FQ	16.5	25	152	56	34
DTL2-185FQ	18.5	27	163	58	40
DTL2-240FQ	21	30	168	60	40
DTL2-300FQ	24	34	180	65	50
DTL2-400FQ	27	38	192	70	50

Note:

The combination of double-hole brazed copper aluminum terminal and SBT hold pole clamp is especially suitable for the transition connection between circular connection pile head and aluminum wire, such as transformer, vacuum circuit breaker, post switch, etc.
