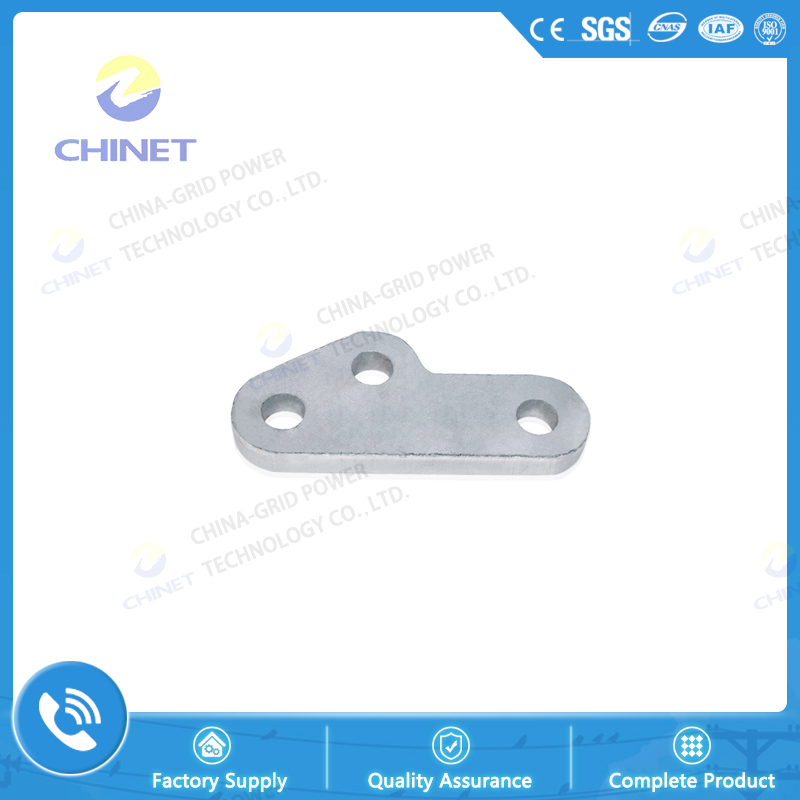

PQ Traction plate

Classification:Connecting Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Technology:
State Network Model 85 Standard Model Main Dimensions
(mm)
Nominal Failure Load
(kN)
B Φ H L1 L
PQ-07100 QY-7 16 18 22 38 100 70
PQ-10120 QY-10 16 20 25 42 120 100
PQ-12150 QY-12 16 24 30 52 150 120
PQ-16180 QY-16 18 26 35 55 180 160
QY-20 26 30 45 75 200 200
PQ-21200 20 26 45 75 200 210
QY-25 30 33 50 85 220 250
PQ-25220 24 30 50 85 220 250
QY-30 32 39 57 95 240 300
PQ-32240 28 33 57 95 240 320
PQ-42260 32 39 70 100 260 420
