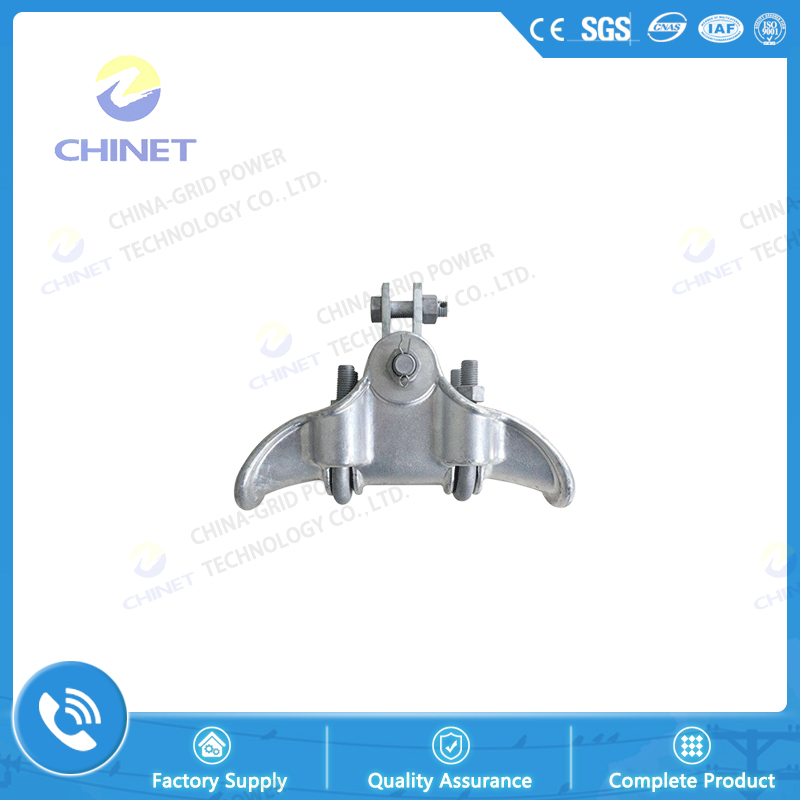

CGF Aluminum Alloy Corona-Proof Suspension Clamp for 500kV Transmission Wire

Classification:Suspension clamp

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:

Suspension clamps are mainly used for overhead power lines. Wires are suspended from insulators or lightning conductors are suspended from pole towers through connection fittings.

Traditional malleable cast iron clamps have the disadvantages of large hysteresis loss, large hole current loss, and bulky products. The aluminum alloy clamp has the advantages of extremely small hysteresis loss and eddy current loss, light weight, and convenient construction. It meets the requirements of energy saving and consumption reduction in the national power grid transformation and construction.

When the suspension clamp is used for aluminum stranded wire and steel core aluminum stranded wire, it can be wrapped with aluminum sheathing or protective wire to protect the wire. The applicable outer diameter of the wire includes wrappings.

Percentage of suspension clamp gripping force to rated tensile force of wire:
Wire Class Wire Structure(Aluminum Ratio) Percent
ACSR
(Steel core aluminum stranded wire)
>1.7 12
4.0-4.5 18
5.0-6.5 20
7.0-8.0 22
11.0-20.2 24
Steel stranded wire Ultimate strength 1176-1274 14
Aluminum stranded wire 30

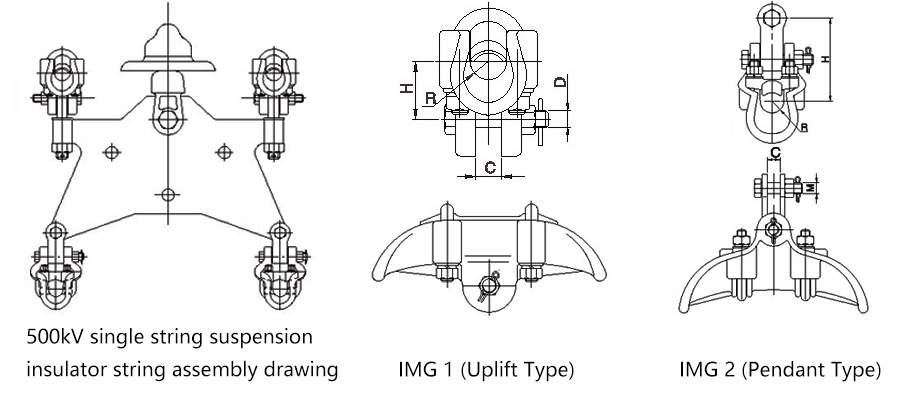

Type Equivalent model IMG Suitable for wire diameter range
(including wrapped wrapped)(mm)
Main Dimensions(mm) Nominal failure load
(kN)
Reference weight
(kg)
H R C M
CGF-0734K CGF-5K IMG 1 Φ26.0 ~ 34.0 55 17 24 16 70 3.0
CGF-1040K Φ34.0 ~ 40.0 60 20 24 18 100 3.6
CGF-1046K CGF-6K Φ40.0 ~ 46.0 63 23 26 18 100 3.6
CGF-0734C CGF-5C IMG 2 Φ26.0 ~ 34.0 130 17 20 16 70 3.3
CGF-1040C Φ34.0 ~ 40.0 140 20 22 18 100 4.1
CGF-1046C CGF-6C Φ40.0 ~ 46.0 153 23 20 18 100 4.3
