JBL、JBT、JBTL Span Parallel Groove Clamp (Equivalent KKY. JBL)

Classification:Overhead Insulating Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:

The cross-section parallel groove clamp is suitable for the non-bearing connection and branch of the overhead power line. It has the characteristics of convenient and flexible installation and large wire diagram. JBTL series copper and aluminum cross-section clamps are used for friction welding or fiber brazing. The insulating cover is used together with the wire clamp to prevent the protection.

Insulating Cover Features:

1.Power frequency withstand voltage: = 4kV for 1 minute without breakdown, no flashover;

2.Insulation resistance: >1.0×1014Ω

3.Ambient temperature: -300C~900C

4.Weather resistance: good performance after 1008 hours of artificial weathering test

5.This insulation cover is suitable for overhead power lines of 10kV and below.

Name Type Nominal Cutting Surface
(mm2)
Remark

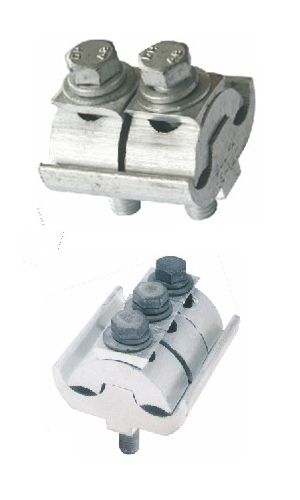

Cross-section Parallel Groove Clamp JBL-4~35/2 16~35/4~16 Hangzhou Type
JBL-10~70/2 10~70
JBL-16~120/2 16~120
JBL-16~120/3 16~120
JBL-50~240/2 50~240
JBL-50~240/3 50~240
JBL-120~400/2 120~400
JBL-120~400/3 120~400
JBL-35~120 35~120 Shanghai Type
JBL-95~300 95~300
JBL-50~240D 50~240 Dongbei Type
JBL-16~120 16~120 Beijing Type
JBL-50~240 50~250

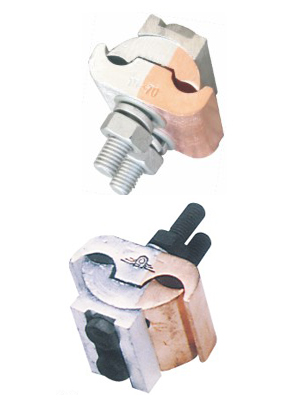

Copper Cross-section Parallel Groove Clamp JBT-16~120 16~120
JBT-50~240 50~240
Copper Cross-section Parallel Groove Clamp JBTL-10~70 10~70 Friction welding
JBTL-16~120 16~120
JBTL-50~240 50~240
JBTL-10~70Q 10~70 Brazed
JBTL-16~120Q 16~120
JBTL-50~240Q 50~240
Notes:

1. J-connecting tube; Y-round; the number indicates the nominal area of the applicable wire, the additional letter YL indicates the weather-resistant insulated cable;

2. When using low voltage 1kV, the complete set includes aluminum tube, 1kV heat shrinkable tube, and one piece of hot melt adhesive. When using high voltage 10kV, the full set includes aluminum tube, 10kV heat shrinkable tube, 10kV stress tube, hot melt adhesive 1 each.

3. According to the needs of users, it can also be used in combination with cold shrink tubes, which is more convenient to install.
