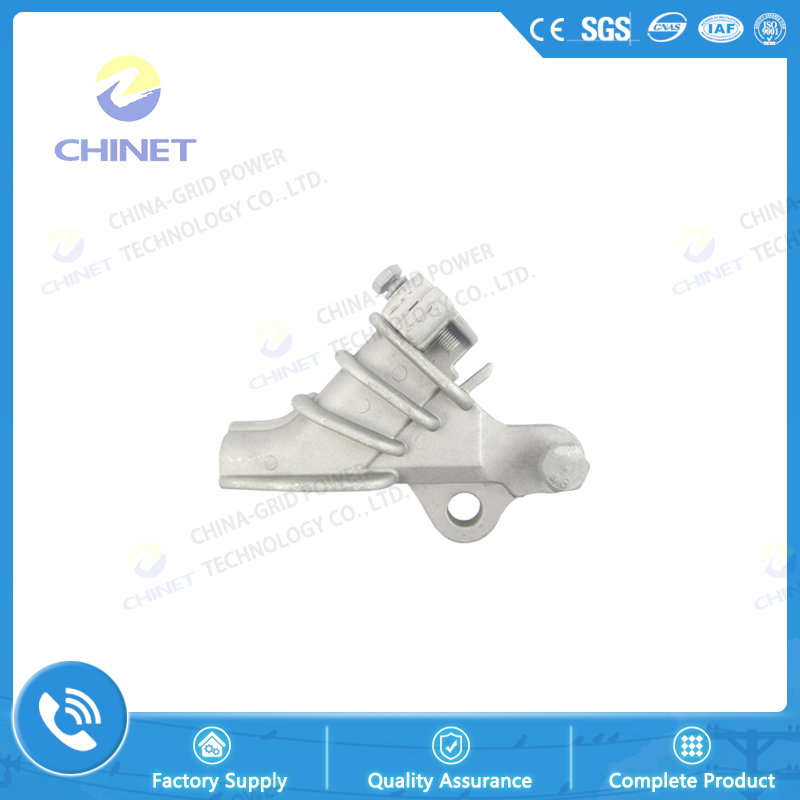

The wedge tension clamp is suitable for fixing the steel-cored aluminum stranded wire, the overhead insulated steel-cored aluminum stranded wire or the overhead insulated copper wire to the tensile insulator string of the corner or the terminal tower, thereby pulling or pulling the overhead conductor, the insulating cover Used in conjunction with tension clamps for insulation protection
Insulation Cover Features:1.Power frequency withstand voltage: ≥45kV for 1 minute without breakdown, no flashover;
2.Insulation resistance: >1.0×1014Ω
3.Ambient temperature: -300C~900C
4.Weather resistance: good performance after 1008 hours of artificial weathering test
| Model (Steel Body Aluminum Alloy Inner Wedge) |
Applicable Conductor Outer Diameter (mm) |
Applicable Wire Type Specification | PE Insulation Cover | |
| Steel Core Aluminum Stranded Wire (LGJ) | Insulated Steel Core Aluminum Stranded Wire (JKGYJ-) Peeling | |||
| NXT-1G | Φ 9.6 ~ 14.0 | 50/8 ~ 95/15 | 50/8 ~ 95/15 | NXLZ-1 |
| NXT-2G | Φ 16.0 ~ 19.0 | 150/8 ~ 185/25 | 150/8 ~ 185/25 | NXLZ-3 |
| NXT-3G | Φ 19.6 ~ 22.8 | 240/30 | 240/30 | NXLZ-4 |
|
If order a product with an insulating cover, add Z after the model number, such as "NXT-3GZ" |
||||
