NXJ type insulation tension clamp is suitable for distribution wire up to 10KV, fixing the aerial insulation aluminum conductor or the naked aluminum conductor on the rotate angle or insulator of terminal tension pole, and then fixing and tightening the aerial conductor; the insulation cover and the tension clamp are used together for insulation protection.

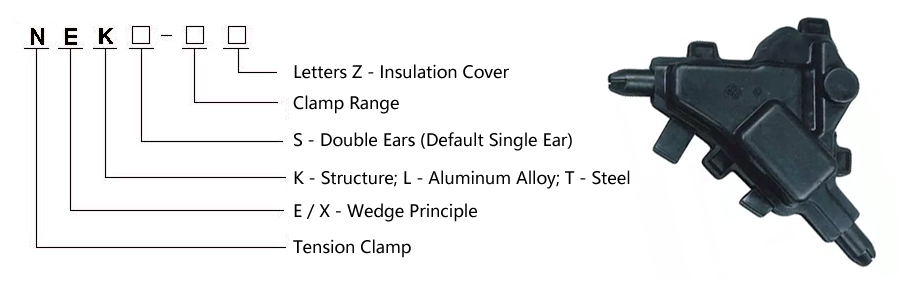

The product is divided into NEK series and NXL series according to the position of the tight loop; it is divided into single ear type (default) and double ear type according to the different hanging loops (used by the letter S after the model number). At present, most of the manufacturers, users and design are not clearly defined, which leads to the selection of errors and the installation of fittings and insulators.

1·Select non-magnetic special aluminum alloy die-casting, high strength and energy saving;

2· Wedge locking structure, good grip, anti-loose, maintenance-free;

3·Open design, parts are connected, no parts will be dropped during loading and unloading, and installation is easy;

1.Power frequency withstand voltage: ≥45kV for 1 minute without breakdown, no flashover;

2.Insulation resistance: >1.0×1014Ω

3.Ambient temperature: -300C~900C

4.Weather resistance: good performance after 1008 hours of artificial weathering test
