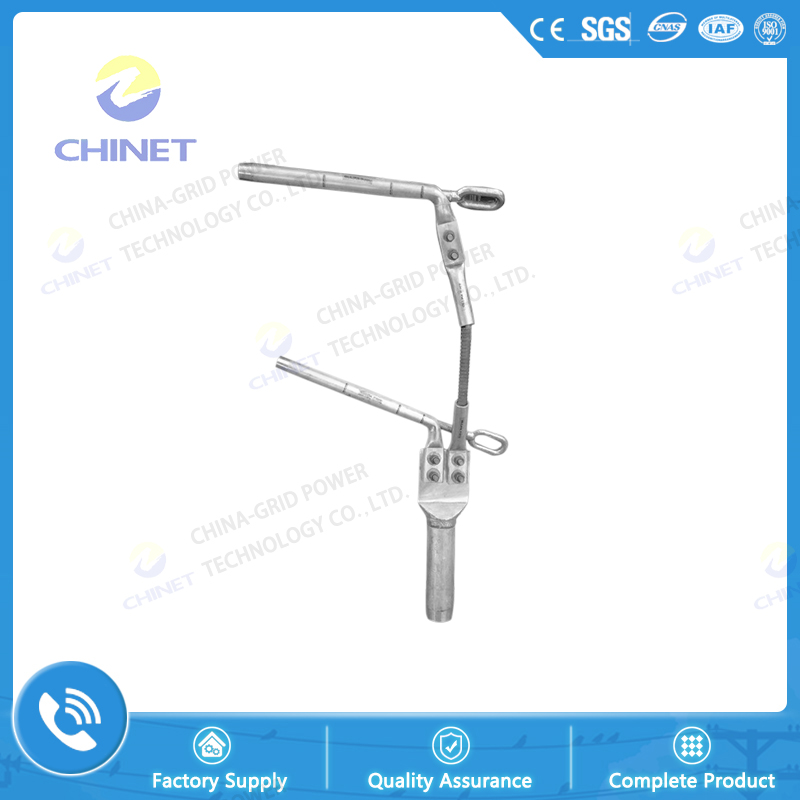

JR 4-2 Bundle Conductor Clamp

Classification:Splicing Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Specifications
Technology:

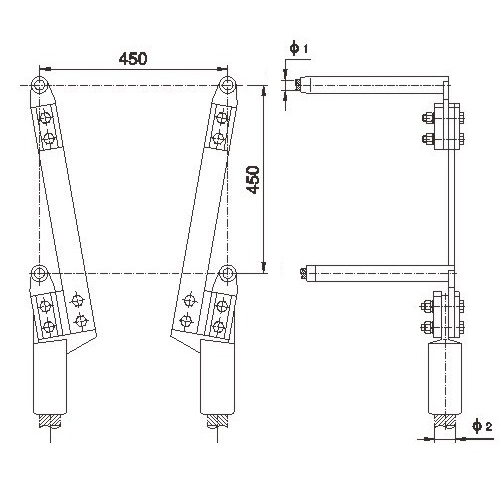

Type Applicable Conductor Dimensions
(mm)
Weight
(kg)
Four Conductor Two Conductor Φ1 Φ2
JR-2/4-300/40-900K LGJ-300/40 LGKK-900 23.94 49.00 25.0
JR-2/4-300/40-1400 LGJ-300/40 LGJQT-1400 23.94 51.00 26.5
JR-2/4-300/40-1440N LGJ-300/40 NAHLGJQ-1440 23.94 51.36 27.0
JR-2/4-400/50-900K LGJ-400/50 LGKK-900 27.63 49.00 25.0
JR-2/4-400/50-1400 LGJ-400/50 LGJQT-1400 27.63 51.00 26.5
JR-2/4-400/50-1440N LGJ-400/50 NAHLGJQ-1440 27.63 51.36 27.0

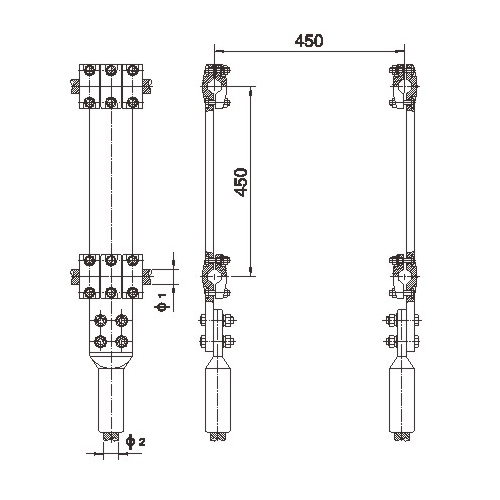

Type Applicable Conductor Dimensions
(mm)
Weight
(kg)
Four Conductor Two Conductor Φ1 Φ2
JNY-2/4-300/40-900K LGJ-300/40 LGKK-900 23.94 49.00 24.0
JNY-2/4-300/40-1400 LGJ-300/40 LGJQT-1400 23.94 51.00 24.8
JNY-2/4-300/40-1440N LGJ-300/40 NRLH58GJ-1440 23.94 51.36 25.5
JNY-2/4-400/50-900K LGJ-400/50 LGKK-900 27.63 49.00 24.0
JNY-2/4-400/50-1400 LGJ-400/50 LGJQT-1400 27.63 51.00 24.8
JNY-2/4-400/50-1440N LGJ-400/50 NRLH58GJ-1440 27.63 51.36 25.5
Type Applicable Conductor Dimensions
(mm)
Weight
(kg)
Four Conductor Two Conductor Φ1 Φ2
JTY-2/4-300/40-900K LGJ-300/40 LGKK-900 23.94 49.00 15.8
JTY-2/4-300/40-1400 LGJ-300/40 LGJQT-1400 23.94 51.00 17.4
JTY-2/4-300/40-1440N LGJ-300/40 NRLH58GJ-1440 23.94 51.36 16.8
JTY-2/4-400/50-900K LGJ-400/50 LGKK-900 27.63 49.00 15.8
JTY-2/4-400/50-1400 LGJ-400/50 LGJQT-1400 27.63 51.00 17.4
JTY-2/4-400/50-1440N LGJ-400/50 NRLH58GJ-1440 27.63 51.36 16.8
Type Applicable Conductor Dimensions
(mm)
Weight
(kg)
Four Conductor Two Conductor Φ1 Φ2
JTL-2/4-300/40-900K LGJ-300/40 LGKK-900 23.94 49.00 23.0
JTL-2/4-300/40-1400 LGJ-300/40 LGJQT-1400 23.94 51.00 23.5
JTL-2/4-300/40-1400K LGJ-300/40 NRLH58GJ-1440 23.94 51.36 24.0
JTL-2/4-400/50-900K LGJ-400/50 LGKK-900 27.63 49.00 23.0
JTL-2/4-400/50-1400 LGJ-400/50 LGJQT-1400 27.63 51.00 23.5
JTL-2/4-400/50-1400K LGJ-400/50 NRLH58GJ-1440 27.63 51.36 24.0
