Classification：Splicing Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
| Type | Applicable Steel Wire |
Main Dimensions (mm) |
Grip (>≥>kN) |
Weight (kg) |
||

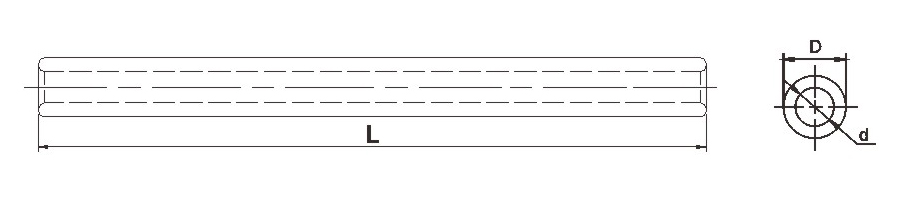

| D | d | L | ||||
| JBD-25G | 1 x 7-6.6 | 18 | 12 | 100 | 33 | 0.11 |
| JBD-35G | 1 x 7-7.8 | 22 | 16 | 110 | 45 | 0.15 |
| JBD-50G | 1 x 7-9.0 | 25 | 17 | 130 | 60 | 0.27 |
| JBD-55G | 1 x 7-9.6 | 26 | 18 | 130 | 70 | 0.28 |
| JBD-70G | 1 x 19-11.0 | 28 | 20 | 150 | 80 | 0.35 |
| JBD-80G | 1 x 19-11.5 | 28 | 21 | 150 | 100 | 0.32 |
| JBD-100G | 1 x 19-13.0 | 32 | 24 | 170 | 120 | 0.47 |
|
||||||
