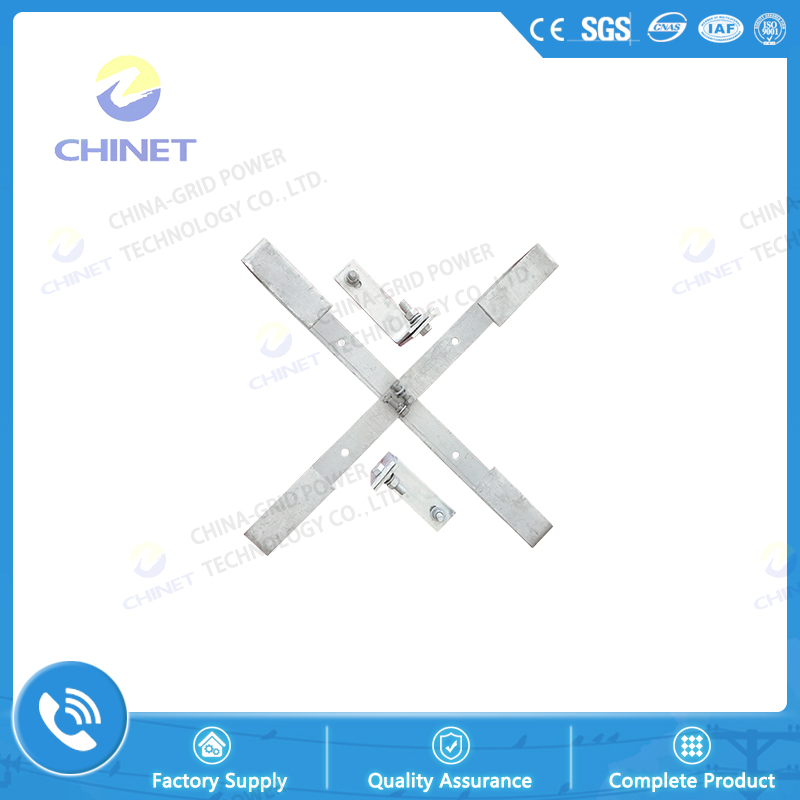

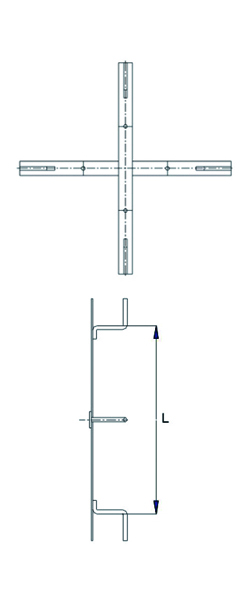

Cable storage assembly is used for being put winding extra cable on the connection pole, matched with optical cable joint box, just one joint box matched with one cable storage assembly.
| Name | Type | Parameter | Fitting Matched | Applicable Cable Range |
|
|
| Length (mm) |
Weight (kg) |
|||||
| Cable Storage Assembly | TJY660-T | 660 | 4.1 | Small Splint |
Applicable for ADSS cable not more than 14.8mm in cable diameter |
|
| TJY1000-T | 1000 | 7.7 | Small Splint |
Applicable for ADSS cable,more than 14.8mm in cable diameter Applicable for OPGW cable,not more than 14.8mm in cable diameter |
||
| TJY1200-T | 1200 | 11.8 | Small Splint |
Applicable for OPGW cable more than 14.8mm in cable diameter |
||
| Cable Storage Assembly | TJY660-H | 660 | 4.1 | Support for Pole |
Applicable for ADSS cable not more than 14.8mm in cable diameter |
|
| TJY1000-H | 1000 | 7.7 | Support for Pole |
Applicable for ADSS cable more than 14.8mm in cable diameter Applicable for OPGW cable,not more than 14.8mm in cable diameter |
||
| TJY1200-D | 1200 | 11.8 | Elbow Hoop |
Applicable for ADSS cable more than 14.8mm in cable diameter |
||
|
1.T——represents the tower H*——stainless steel belt hoop model (determined according to Table 10.2) D*——indicates the rod diameter 2. When the remaining cable frame is installed on the iron tower, it is equipped with two small splints. 3. When the remaining cable frame is installed on the pole, it is equipped with two sets of pole supports or two sets of elbow hoops. 4. Rod diameter ¢ 450 or less with the support rod, ¢ 450 or more with elbow hoop. |
||||||

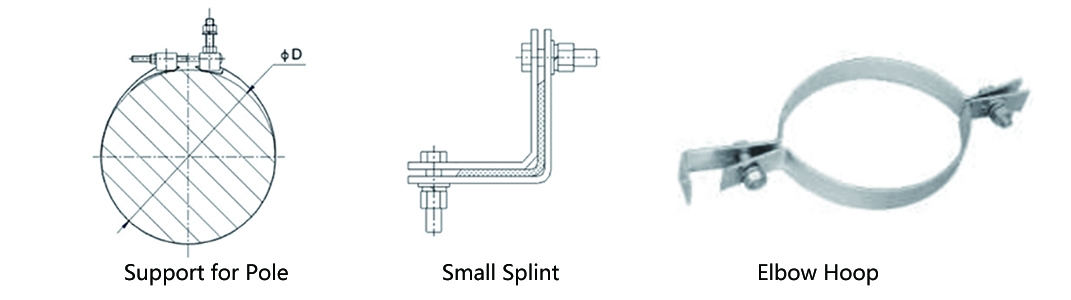

| Support for Pole | |||||
| Name | Model |
Applicable Pole Diameter (mm) |
Weight (kg) |
Material | |
| Support for Pole | TJY-H1 | 150-310 | 0.48 | Stainless Steel Strip | |
| Support for Pole | TJY-H2 | 311-460 | 0.52 | ||
| Support for Pole | TJY-H3 | 461-600 | 0.57 | ||
| Support for Pole | TJY-H4 | 601-800 | 0.62 | ||
| Support for Pole | TJY-H5 | 801-1000 | 0.72 | ||
| Small Splint | |||||
| Name | Model |
Applicable Angle Iron Dimension for Iron Tower (mm) |
Weight (kg) |
Material | Remark |
| Small Splint | TJB-70 | ≤70 | 1.02 | Hot Dip Galvanized Steel | |
| Small Splint | TJB-100 | 71-100 | 1.22 | Hot Dip Galvanized Steel | |
| Small Splint | TJB-150 | 101-150 | 1.61 | Hot Dip Galvanized Steel | |
| Elbow Hoop | |||||
| Name | Model | Applicable Installation Diameter |
Weight (kg) |
Material |
Failing Load (kN) |
| Elbow Hoop | TGQ 175 070 | Installation Location:151~175mm | 2.7 | Galvanized Steel | 70 |
| TGQ 200 070 | Installation Location:176~200mm | 2.9 | Galvanized Steel | 70 | |
| TGQ 225 070 | Installation Location:201~220mm | 3.2 | Galvanized Steel | 70 | |
| TGQ 250 070 | Installation Location:226~250mm | 3.4 | Galvanized Steel | 70 | |
| TGQ 275 070 | Installation Location:251~275mm | 3.6 | Galvanized Steel | 70 | |
| TGQ 300 070 | Installation Location:276~300mm | 3.8 | Galvanized Steel | 70 | |
| TGQ 325 070 | Installation Location:301~325mm | 4.0 | Galvanized Steel | 70 | |
| TGQ 350 070 | Installation Location:326~350mm | 4.3 | Galvanized Steel | 70 | |
| TGQ 375 070 | Installation Location:351~375mm | 4.5 | Galvanized Steel | 70 | |
| TGQ 400 070 | Installation Location:376~405mm | 4.7 | Galvanized Steel | 70 | |
| TGQ 425 070 | Installation Location:401~425mm | 4.9 | Galvanized Steel | 70 | |
| TGQ 450 070 | Installation Location:426~450mm | 5.1 | Galvanized Steel | 70 | |
| TGQ 475 070 | Installation Location:451~475mm | 5.4 | Galvanized Steel | 70 | |
| TGQ 500 070 | Installation Location:476~500mm | 5.6 | Galvanized Steel | 70 | |
| TGQ 525 070 | Installation Location:501~525mm | 5.8 | Galvanized Steel | 70 | |
| TGQ 550 070 | Installation Location:526~550mm | 6.0 | Galvanized Steel | 70 | |
| TGQ 575 070 | Installation Location:551~575mm | 6.2 | Galvanized Steel | 70 | |
| TGQ 600 070 | Installation Location:576~600mm | 6.5 | Galvanized Steel | 70 | |
| TGQ 625 070 | Installation Location:601~625mm | 6.7 | Galvanized Steel | 70 | |
| TGQ 650 070 | Installation Location:626~650mm | 6.9 | Galvanized Steel | 70 | |
| TGQ 675 070 | Installation Location:651~675mm | 7.1 | Galvanized Steel | 70 | |
| TGQ 700 070 | Installation Location:676~700mm | 7.3 | Galvanized Steel | 70 | |

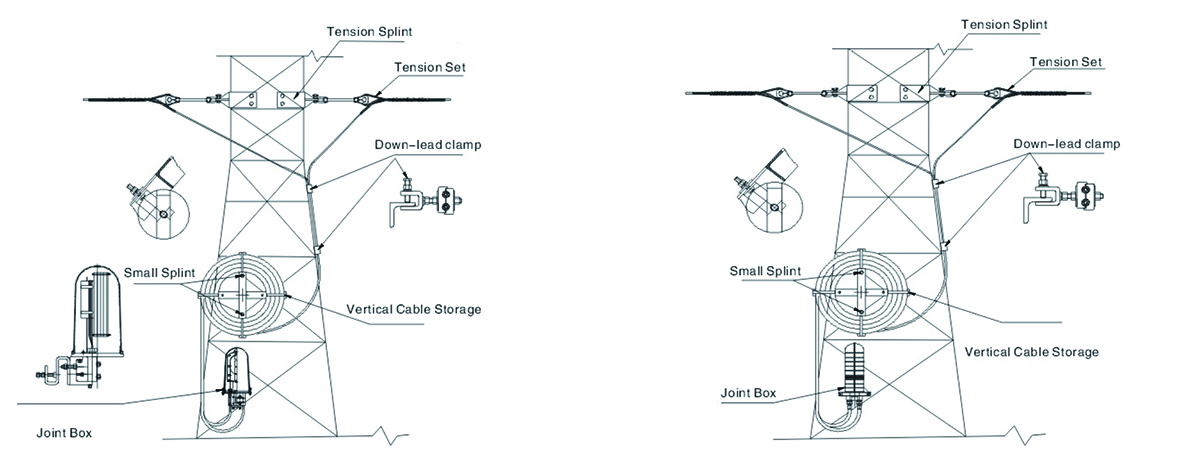

The Installation Sketch Map of Joint Box、Cable Storage Assembly for Tower
