4D transmission line Vibration Dampers

Classification:Preformed Optical Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Product Description

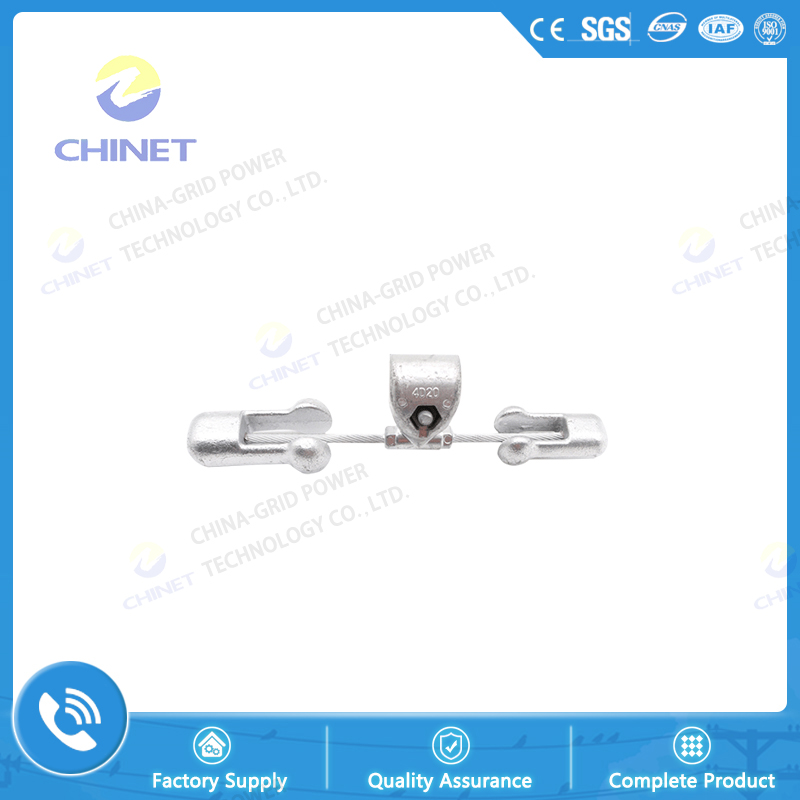

4D Damper Description:

4D series provided by the company for the Stockbridge Damper tuning fork design, more resonant sound damping device, mainly for reduced vibration and dispersion of fiber optic cable as the breeze generated by the impact energy

Model Clamp Dia. Range
(mm)
Total Length
(mm)
Clam W
(mm)
Weight
(kg)
4D-30-27.0 27.0-22.3 383 52 2.5
4D-30-23.4 23.4-19.5 383 52 2.5
4D-30-20.3 20.3-16.5 383 52 2.5
4D-30-18.0 18.0-15.0 383 52 2.5
4D-30-16.0 16.0-14.0 383 52 2.5
4D-30-14.0 14.0-12.2 383 52 2.5
4D-20-27.0 27.0-22.3 330 52 1.4
4D-20-23.4 23.4-19.5 330 52 1.4
4D-20-20.3 20.3-16.5 330 52 1.4
4D-20-18.0 18.0-15.0 330 52 1.4
4D-20-16.0 16.0-14.0 330 52 1.4
4D-20-14.0 14.0-12.2 330 52 1.4

OPGW cable commonly used in the vibration device can also be used for ADSS optic cable.

OPGW installed damper number of configuration cable:
Cable Dia. (mm) Span (m)
d<12 100~300 300~600 600~900
12≤d<22 100~250 350~700 700~1000 1000~1200
Damper quantity (per span) 2 4 6 8
ADSS installed damper number of configuration table
Cable Dia. (mm) Span (m)
d<12 100~250 250~450 450~700
12≤d<22 100~250 250~500 500~800 1000~1200
Damper quantity (per span) 1 2 4 6

Note: Critical space, and for the safety reasons, the number of dampers do not use more than less.

Choose Model

1.Selection of two factors to consider, first select the damper, and second, choose to install the wire diameter. OPGW fiber optic cable into account the main technical parameters, such as tension, wind speed, terrain and other factors determine the selection of damper.

2.Weight choice:Theoretical formula Z=(T*M)1/2 【Z is the characteristic impedance value of the optical cable. This value is the model of anti-vibration. If Z>100, choose 4D-30. If Z≤100, choose 4D-20.】

Note: T-fiber rated tensile craftsman 18%-25% (KN) M cable unit weight kg/km

3.Clamping diameter selection:The clamping path refers to the sum of the diameter of the cable and the double diameter of the skein in the tension clamp (or suspension line). If installed in the retaining wire, the clamping diameter is twice the diameter of the cable diameter.

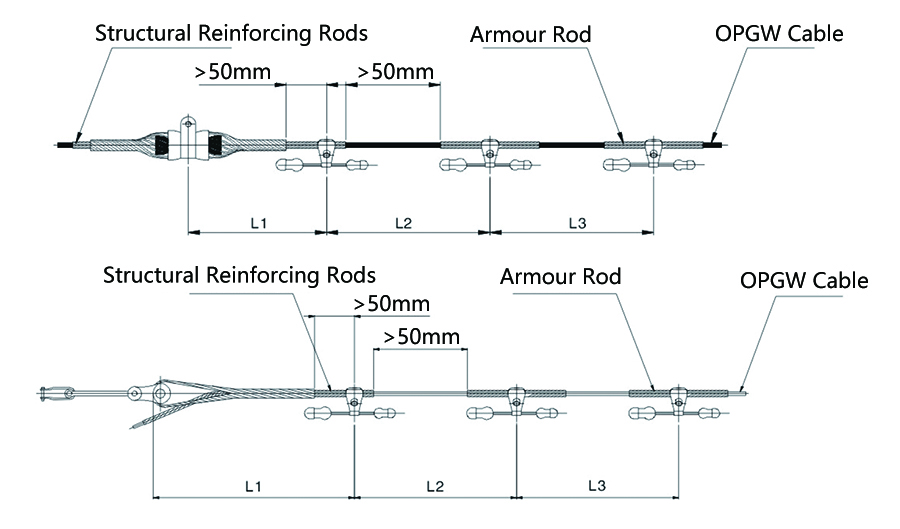

4.1 determination of installation position:Install according to the requirements of anti vibration scheme.

Matters needing attention:

1. According to the calculation, if the calculated installation position of anti vibration damper falls on the inner winch, it is not necessary to install protective rod, and it can be installed directly.

2. If the calculated installation position of the damper falls on the optical cable, the protective rod shall be added, and the distance between the end of the protective rod and the end of the inner stranded wire shall be at least 50mm.

3. If the installation position of the damper falls on the outer stranded wire, it can be offset a little and installed directly on the inner stranded wire, but the distance between the center of the damper and the end of the outer stranded wire is more than 50mm.

4. damper head direction: the big damper head is toward the tower.

Model Cable Dia. (mm) Material Length (mm) Weight (kg) Model Cable Dia. (mm) Material Length (mm) Weigth (kg)
TFH 0800 7.4-8.0 antirust aluminium alloy 400 0.12 TFH 1410 13.7-14.1 antirust aluminium alloy 500 0.23
TFH 0880 8.1-8.8 antirust aluminium alloy 400 0.12 TFH 1430 14.2-14.3 antirust aluminium alloy 500 0.23
TFH 0960 9.0-9.6 antirust aluminium alloy 450 0.15 TFH 1450 14.4-14.5 antirust aluminium alloy 500 0.23
TFH 1010 9.7-10.1 antirust aluminium alloy 450 0.15 TFH 1510 14.6-15.1 antirust aluminium alloy 500 0.25
TFH 1060 10.2-10.6 antirust aluminium alloy 450 0.17 TFH 1580 15.2-15.8 antirust aluminium alloy 550 0.28
TFH 1110 10.7-11.1 antirust aluminium alloy 450 0.17 TFH 1600 15.9-16.0 antirust aluminium alloy 550 0.30
TFH 1160 11.2-11.6 antirust aluminium alloy 500 0.19 TFH 1690 16.1-16.9 antirust aluminium alloy 550 0.30
TFH 1170 11.7-11.7 antirust aluminium alloy 500 0.21 TFH 1730 17.0-17.3 antirust aluminium alloy 550 0.30
TFH 1200 11.8-12.0 antirust aluminium alloy 500 0.21 TFH 1800 17.4-18.0 antirust aluminium alloy 550 0.33
TFH 1270 12.1-12.7 antirust aluminium alloy 500 0.21 TFH 1840 18.1-18.4 antirust aluminium alloy 550 0.33
TFH 1290 12.8-12.9 antirust aluminium alloy 500 0.23 TFH 1880 18.5-18.8 antirust aluminium alloy 550 0.35
TFH 1360 13.0-13.6 antirust aluminium alloy 500 0.23
