Description:
1.Stress can be distributed equally among the ADSS/OPGW cable surface without stress centralization to protect ADSS/OPGW cable.
2.It has higher grip strength for the cable and can support higher tensile force when stress doesn't exceed the optical cable's side strength.
3.The grip strength for the cable is not less than 95% rated tension strength(RTS),of the optical cable,fully suitable for the installation of ADSS/OPGW cable.
4.The surface and the smooth shaped of end improve the discharging voltage and reduce the loss of electric power.
5.The superior aluminum alloy material has higher comprehensive mechanical performence and cauterization resisting capability,and extends the lifetime usage.
6.Easy installation, no need for special tools, no need for maintenance.
General Information:

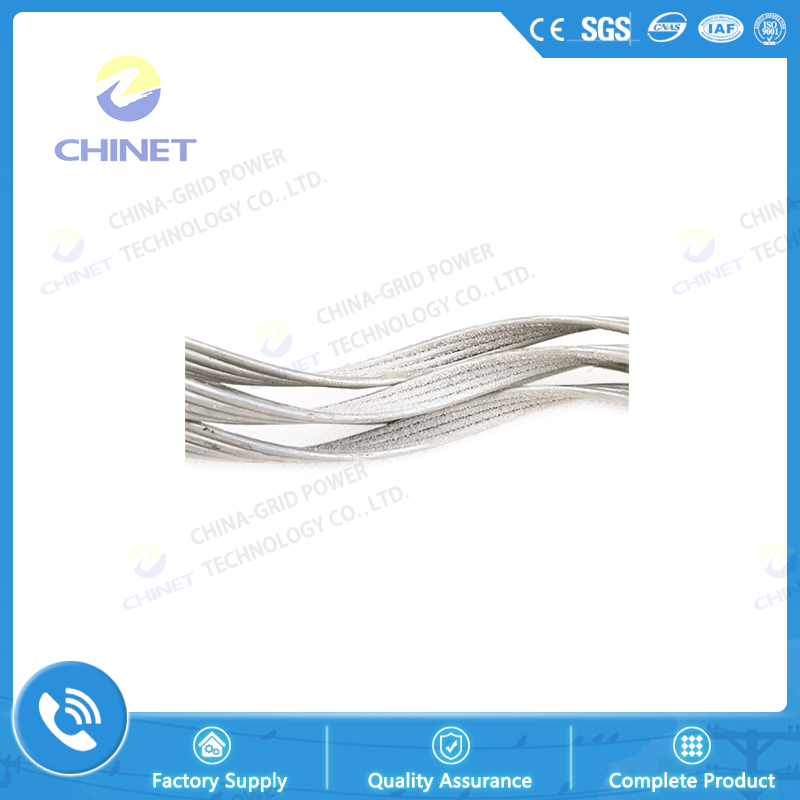

Preformed conductor splice follow the break connection, damage repair and so on, can replace the widely used hydraulic connecting pipes, burst pressure connecting tubes connecting methods.
Preformed conductor splice is made from the inner section of tension continue, filling section, the outer section of three parts.
1) The inner rods Shall be used to follow steel core;
2) Filling rods shall be installed in the inner layer, guaranteeing installation of the same diameter and the diameter ACSR.
3) The outer line splicing is designed to follow basic agreement traverse only slightly increased to compensate for the length of stripped of the aluminum wire.
Model
|
Suitable Steel Strand Dia.
(mm)
|
Color Code
|
Clamp Length
(mm)
|
JX 5410
|
4.42 ~ 4.60
|
Red
|
500
|
JX 5411
|
5.5 ~ 5.85
|
Yellow
|
620
|
JX 5412
|
5.86 ~ 6.00
|
Blue
|
650
|
JX 5413
|
6.01 ~ 6.28
|
Green
|
650
|
JX 5414
|
6.29 ~ 6.56
|
Black
|
680
|
JX 5415
|
6.57 ~ 6.84
|
Purple
|
695
|
JX 5416
|
6.85 ~ 7.12
|
Red
|
730
|
JX 5417
|
7.13 ~ 7.40
|
Yellow
|
755
|
JX 5418
|
7.41 ~ 7.67
|
Blue
|
755
|
JX 5419
|
7.68 ~ 7.95
|
Green
|
780
|
JX 5420
|
7.96 ~ 8.23
|
Black
|
805
|
JX 5421
|
8.24 ~ 8.54
|
Purple
|
805
|
JX 5422
|
8.55 ~ 8.86
|
Red
|
860
|
JX 5423
|
8.87 ~ 9.25
|
Yellow
|
935
|
JX 5424
|
9.26 ~ 9.63
|
Blue
|
960
|
JX 5425
|
9.64 ~ 10.01
|
Green
|
975
|
JX 5426
|
10.02 ~ 10.39
|
Black
|
1040
|
JX 5427
|
10.40 ~ 10.82
|
Purple
|
1060
|
JX 5428
|
10.83 ~ 11.23
|
Red
|
1290
|
JX 5429
|
11.24 ~ 11.66
|
Yellow
|
1360
|
JX 5430
|
11.67 ~ 12.04
|
Blue
|
1390
|
JX 5431
|
12.05 ~ 12.55
|
Green
|
1420
|
JX 5432
|
12.57 ~ 13.08
|
Black
|
1470
|
