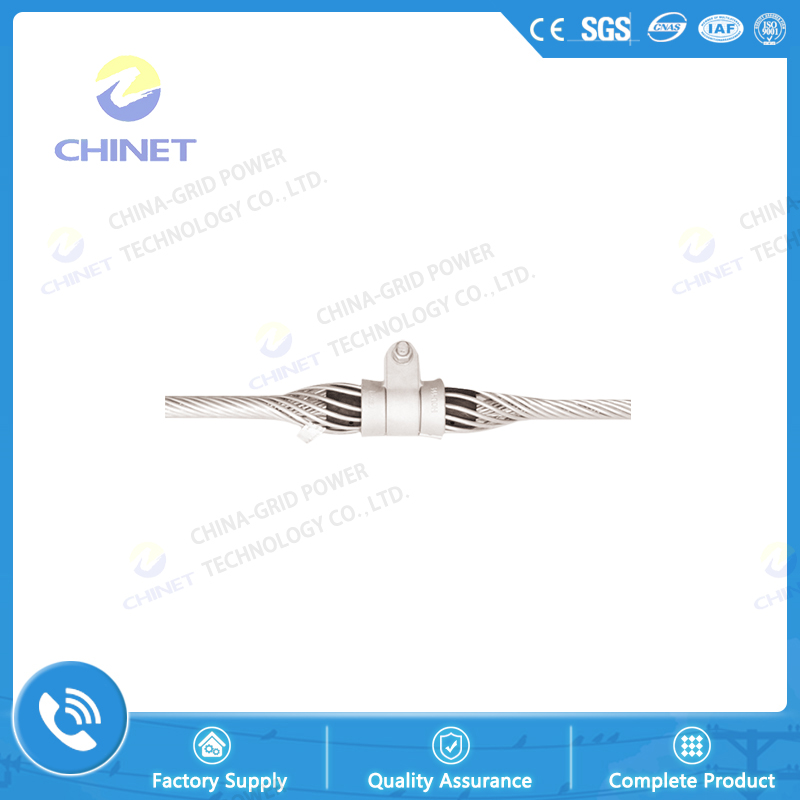

The preformed suspension clamp is used to fix the wire on the insulator string of the linear tower or to suspend the lightning protection line on the linear tower. It can replace the ship type suspension clamps such as XGU and XGF which are widely used on the line.

The preformed suspension clamp is made of rubber with a hyperbolic waist drum-shaped damping pad, and the anti-vibration pad is wound with aluminum alloy preformed wire. In addition to the preformed wire, a high-strength aluminum alloy casing is installed, and the casing is externally added. Aluminum alloy U-shaped card.

The preformed suspension clamp uses a hyperbolic waist drum-shaped vibration damping pad to wrap the wire around the suspension, and has the characteristics of large grip force, small electric storm, light weight and small magnetic loss. It is especially suitable for 220KV and above lines, as well as heavy ice areas and large span lines.

Preformed conductor suspension clamp

Preformed ground conductor suspension clamp

1. The stress of the suspension point is dispersed throughout the length of the pre-twisted wire, which effectively reduces the dynamic stress caused by the static stress and the breeze vibration of the wire, and avoids damage to the wire.

2. The stress concentration of the suspension point greatly improves the fatigue resistance of the wire and prolongs the service life of the wire.

3. Pre-twisted wire can provide reliable grip and withstand high unbalanced loads to avoid wire slippage.

4. special structure, can reduce electromagnetic loss and eliminate corona discharge, compared with the traditional suspension clamp has obvious energy-saving characteristics.

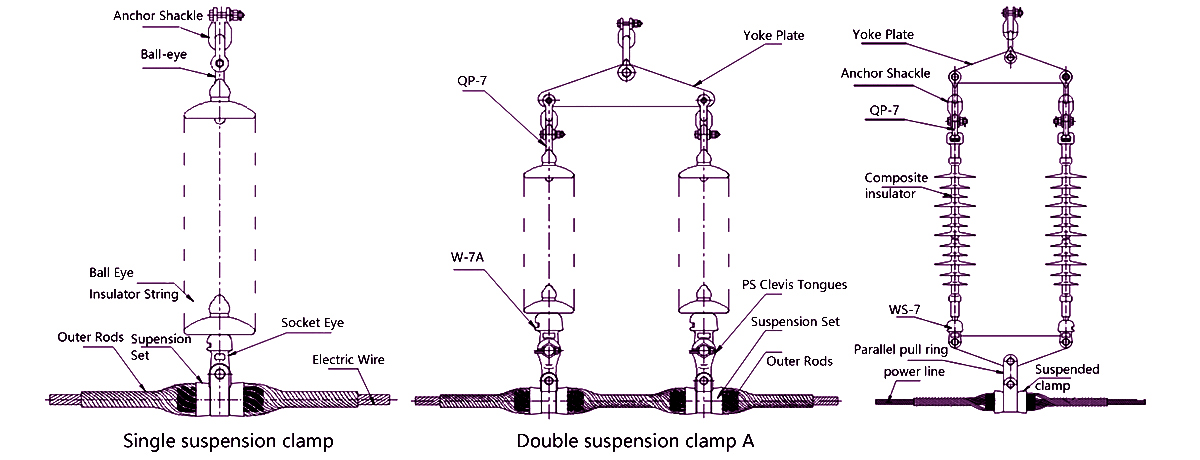

5. The rigidity of the wire hanging point is enhanced, and the radius of curvature is increased. The single-point point clamp can reach a steering angle of 30°, and the double-point line clamp can reach a steering angle of 60°.

1. Please specify the wire type specification when selecting.

2. When the steering angle is between 30° and 60°, or in a large span project, the double fulcrum suspension clamp is directly connected to the insulator string.

3. Workers who have to be trained can install this product.
