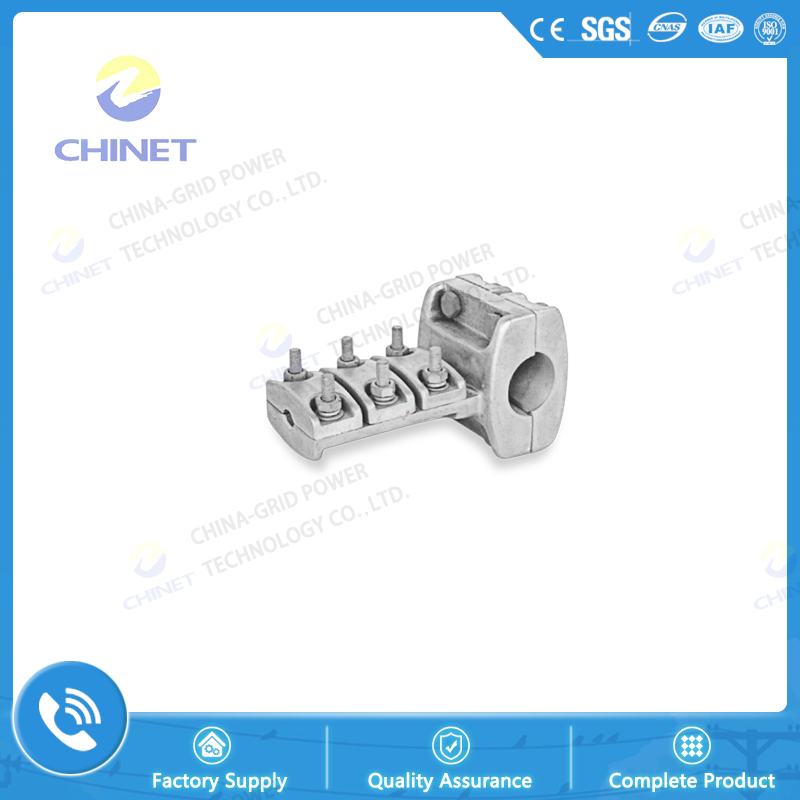

Bolt Type T Type Connector for Tubular Bus-bar equivalent models: MGTT type lead clip
Technical Parameters
|
Type no |
Suitable Bus-bar specification |
Deflectors Type no |
Dimension (mm)) |
Weight (kg) |
|
|
φl |
φ2 |
||||
|
MTL-7O-50 |
φ7O/64 |
LGJ-50 |
7O |
10 |
5.0 |
|
MTL-70-240 |
φ70/64 |
LGJ-240 |
7O |
22 |
5.6 |
|
MTL-70-400 |
φ70/64 |
LGJ-400 |
7O |
28 |
5.8 |
|
MTL-80-400 |
φ80/72 |
LGJ-400 |
80 |
28 |
6.4 |
|
MTL-85-400 |
φ85/75 |
LGJ-400 |
85 |
28 |
6.4 |
|
MTL-90-400 |
φ90/80 |
LGJ-400 |
90 |
28 |
6.7 |
|
MTL-100-240 |
φ100/90 |
LGJ-240 |
100 |
22 |
7.0 |
|
MTL-100-400 |
φ100/90 |
LGJ-400 |
100 |
28 |
7.2 |
|
MTL-110-400 |
φ110/100 |
LGJ-400 |
110 |
28 |
7.5 |
|
MTL-120-400 |
φ120/110 |
LGJ-400 |
120 |
28 |
7.9 |
|
MTL-130-300 |
φ130/116 |
LGJ-300 |
130 |
25 |
8.1 |
|
MTL-130-400 |
φ130/116 |
LGJ-400 |
130 |
28 |
8.2 |
|
MTL-150-400 |
φ130/136 |
LGJ-400 |
150 |
28 |
8.8 |
|
MTL-170-400 |
φ170/156 |
LGJ-400 |
170 |
28 |
9.5 |
|
MTL-200-400 |
φ200/180 |
LGJ-400 |
200 |
28 |
10.2 |
Note: 1. Body and pressure lid are made of aluminum, other parts are hot dip galvanized steel
2. The deflectors according to user needs, when ordering, please specify wire models.
