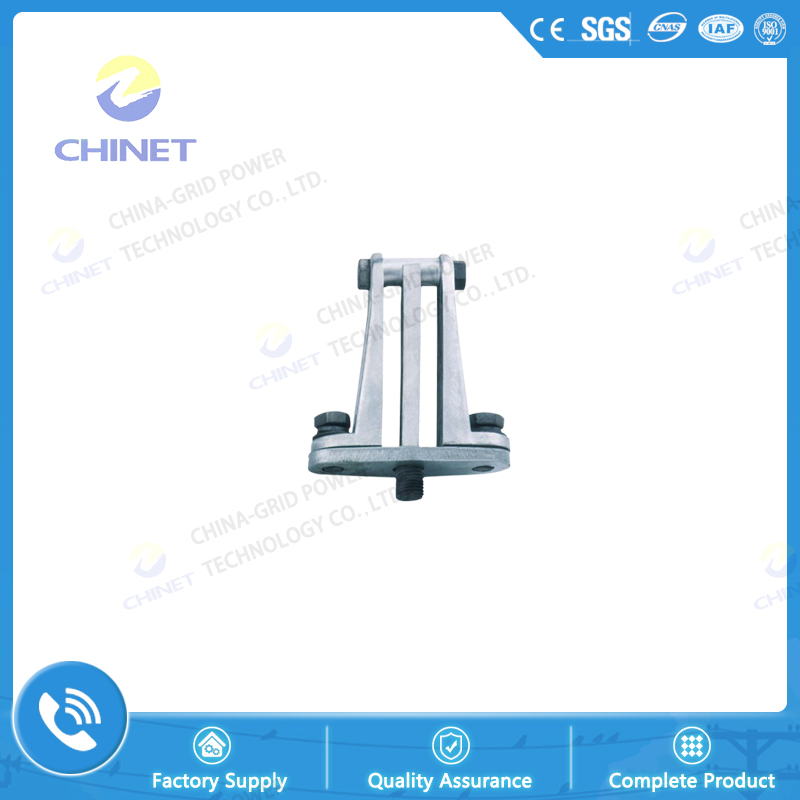

MNL Type Vertical Rectangular Indoor Support is applicable for indoor busbar vertical arrangement.
Technical Parameters
|
Type no |
Suitable Bus-bar(mm) |
Installation With screw Diameter d |
Dimension |
|||
|
Width (mm) |
Qty (piece) |
H |
L1 |
L2 |
||
|
MNL-101 |
63 |
1 |
M10 |
82 |
90 |
60 |
|
MNL-102 |
80 |
100 |
||||
|
MNL-103 |
100 |
120 |
||||
|
MNL-104 |
125 |
145 |
||||
|
MNL-105 |
63 |
M16 |
82 |
|||
|
MNL-106 |
80 |
100 |
||||
|
MNL-107 |
100 |
120 |
||||
|
MNL-108 |
125 |
145 |
||||
|
MNL-201 |
63 |
2 |
M10 |
82 |
113 |
83 |
|
MNL-202 |
80 |
100 |
||||
|
MNL-203 |
100 |
120 |
||||
|
MNL-204 |
125 |
145 |
||||
|
MNL-205 |
63 |
M16 |
82 |
|||
|
MNL-206 |
80 |
100 |
||||
|
MNL-207 |
100 |
120 |
||||
|
MNL-208 |
125 |
145 |
||||
|
MNL-301 |
63 |
3 |
M10 |
82 |
130 |
100 |
|
MNL-302 |
80 |
100 |
||||
|
MNL-303 |
100 |
120 |
||||
|
MNL-304 |
125 |
145 |
||||
|
MNL-305 |
63 |
M16 |
82 |
|||
|
MNL-306 |
80 |
100 |
||||
|
MNL-307 |
100 |
120 |
||||
|
MNL-408 |
125 |
145 |
||||
Composite post insulators with their supporting models:FZN4-12/4-M10,FZN4-24/4-M10,
FZN2-35/6-M10,FZN4-12/4-M16,FZN4-24/4-M16,FZN2-35/6-M16.
Note: The body is made of aluminum alloy, the other parts are hot dip galvanized steel.
