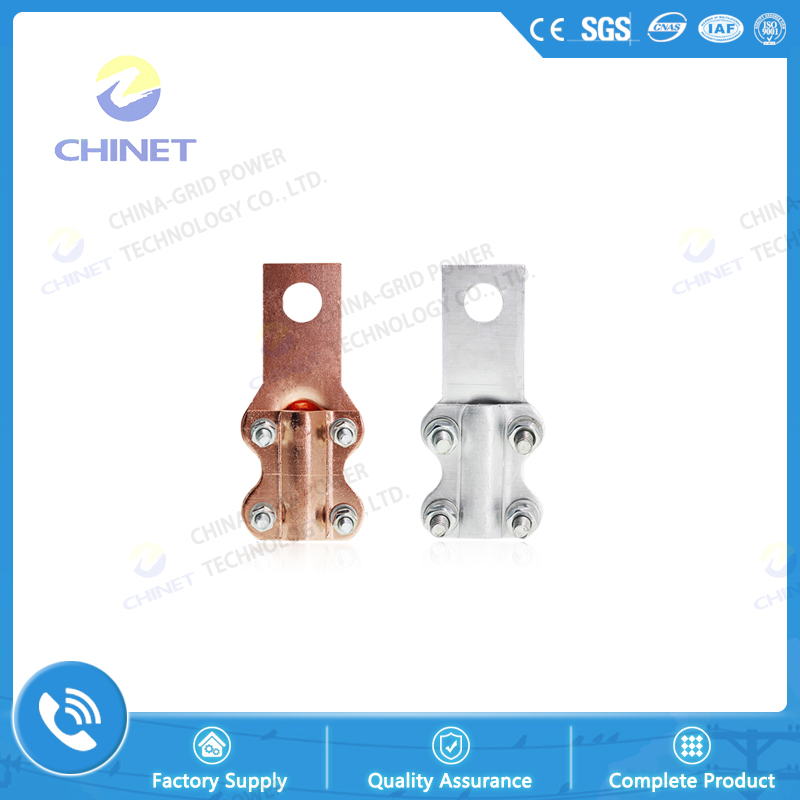

JT JL JTL Type Copper Aluminum Cable Terminal Clamp Power Line Link Fitting

Classification：Cable Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Product Description

JT(JL,JTL) copper, aluminum, copper& aluminum type connecting clamp suitable for transition connection of electrical equipment with a variety of wires, cables, power distribution unit indoors.

Technical Parameters

Electrical Power Transimission Cable connecting Clamp (JT type)

Type no	Suitable Conductor Section Range(mm)	Dimension(mm)
Type no	Suitable Conductor Section Range(mm)	d	L	L1	A	B	B1	B2
JT-100	16-25	10.5	76	41	23	2.5	3.2	3.2
JT-200	25-35	12.5	85	43	25	3.0	4.2	4.0
JT-300	35-50	12.5	95	48	29	3.5	4.2	4.2
JT-400	50-70	12.5	104	53	31	3.5	4.5	4.2
JT-500	70-95	14.5	109	55	33	3.5	5.0	4.5
JT-600	95-120	14.5	114	57	35	4.0	5.0	4.5
JT-800	150-185	14.5	125	65	35	4.0	5.5	5.0
JT-1000	185-240	14.5	136	67	40	4.0	5.8	5.0

Electrical Power Transimission Cable connecting Clamp (JT type)
