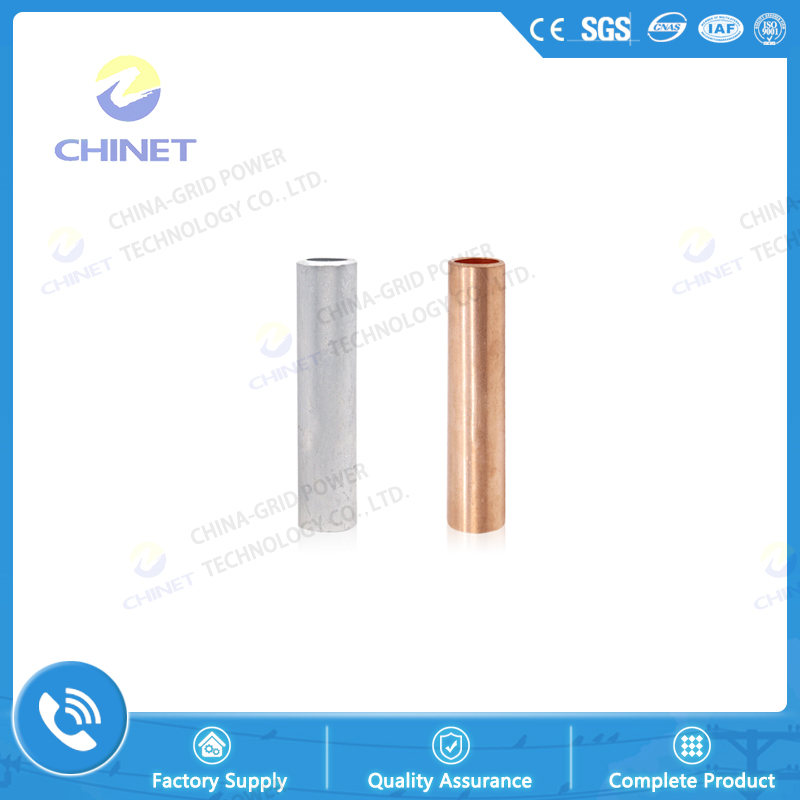

GT & GL type copper & aluminum connecting tubes are mainly used for terminal connection of cold shrinkage or heat shrinkage cable accessories. They are of low resistance, low rising temperature & high mechanical strength.
| Type | Dimension (mm) | |||
| D | d | L | L1 | |
| GT-10 | 9 | 5.3 | 60 | 26 |
| GT-16 | 10 | 6.3 | 65 | 28 |
| GT-25 | 11 | 7.3 | 70 | 32 |
| GT-35 | 12 | 8.5 | 75 | 34 |
| GT-50 | 14 | 9.8 | 80 | 37 |
| GT-70 | 16 | 11.5 | 90 | 42 |
| GT-95 | 18 | 13.5 | 95 | 44 |
| GT-120 | 20 | 15.0 | 100 | 47 |
| GT-150 | 22 | 16.5 | 105 | 49 |
| GT-185 | 25 | 18.5 | 110 | 52 |
| GT-240 | 27 | 21.0 | 120 | 57 |
| GT-300 | 31 | 23.7 | 130 | 62 |
| GT-400 | 34 | 26.0 | 138 | 65 |
| GT-500 | 38 | 29.5 | 149 | 70 |
| GT-630 | 45 | 35.0 | 178 | 82 |
| GT-800 | 50 | 38.0 | 198 | 95 |
| GT-1000 | 60 | 44.0 | 238 | 110 |
| Type | Dimension (mm) | |||
| D | d | L1 | L | |
| GL-10 | 9 | 5.3 | 28 | 65 |
| GL-16 | 10 | 6.3 | 32 | 75 |
| GL-25 | 12 | 7.3 | 35 | 80 |
| GL-35 | 14 | 8.5 | 40 | 90 |
| GL-50 | 16 | 9.8 | 43 | 95 |
| GL-70 | 18 | 11.5 | 47 | 105 |
| GL-95 | 21 | 13.5 | 50 | 110 |
| GL-120 | 23 | 15.0 | 52 | 115 |
| GL-150 | 25 | 16.5 | 55 | 120 |
| GL-185 | 27 | 18.5 | 58 | 125 |
| GL-240 | 30 | 21.0 | 60 | 130 |
| GL-300 | 34 | 24.0 | 65 | 145 |
| GL-400 | 38 | 27.0 | 75 | 158 |
| GL-500 | 42 | 29.0 | 75 | 165 |
Remark: we can customize various specification products based on different requirements. Meanwhile we can finish delivery of items in a shortest time.
