Classification：T-connecting Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
TL Type Single Conductor T Connectors are suitable for branching lines on aerial transmission line or substation.
|

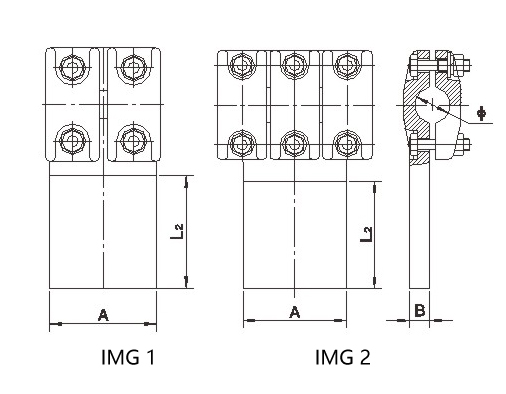

Type | IMG | Suitable conductor | Dimension(mm) | Weight (kg) | |||
| A | B | L2 | Φ | |||||
| TL-185A | IMG 1 | LGJ-185/10~45 | 80 | 12 | 85 | 20 | 2.8 | |
| TL-240A | IMG 1 | LGJ-240/30~40 | 80 | 16 | 85 | 22 | 2.6 | |
| TL-300A | IMG 1 | LGJ-300/15~50 | 80 | 16 | 85 | 25 | 3.8 | |
| TL-400A | IMG 1 | LGJ-400/20~65 | 80 | 16 | 85 | 29 | 4.2 | |
| TL-500A | IMG 1 | LGJ-500/35~65 | 80 | 16 | 85 | 32 | 6.1 | |
| TL-630A | IMG 2 | LGJ-630/45~80 | 100 | 20 | 105 | 35 | 6.8 | |
| TL-800A | IMG 2 | LGJ-800/55~100 | 125 | 22 | 130 | 40 | 7.5 | |
| TL-600KA | IMG 2 | LGKK-600 | 125 | 22 | 125 | 52 | 6.0 | |
| TL-900KA | IMG 2 | LGKK-900 | 125 | 22 | 125 | 52 | 5.6 | |
| TL-1400A | IMG 2 | LGJQT-1400 | 125 | 22 | 125 | 52 | 8.2 | |
| TL-1400NA | IMG 2 | NAHLGJQ-1400 | 125 | 22 | 150 | 52 | 8.9 | |
|
The body and keeper are made of aluminum, the other parts are made of hot-dip galvanized steel. |
||||||||
