Classification：Splicing Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
JX-G Type Repair Sleeve for Steel Wire Conductor is suitable for repairing damaged conductor to resume electric & mechanical performance of the conductor.

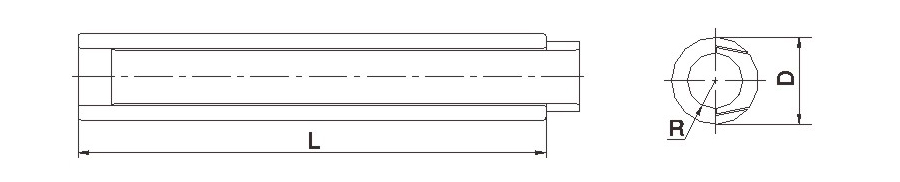

| Type | National Standard Model | Suitable for Wire Type | Dimension(mm) | Weight(kg) | ||
| D | L | R | ||||
| JX-25G | JBE-25G | GJ-25 | 14 | 100 | 3.5 | 0.09 |
| JX-35G | JBE-35G | GJ-35 | 16 | 100 | 4.2 | 0.11 |
| JX-50G | JBE-50G | GJ-50 | 18 | 100 | 4.5 | 0.15 |
| JX-55G | JBE-55G | GJ-55 | 20 | 130 | 5.1 | 0.24 |
| JX-70G | JBE-70G | GJ-70 | 22 | 120 | 5.8 | 0.26 |
| JX-80G | JBE-80G | GJ-80 | 24 | 150 | 6.0 | 0.40 |
| JX-100G | JBE-100G | GJ-100 | 26 | 140 | 7.0 | 0.41 |
| JX-120G | JBE-120G | GJ-120 | 28 | 170 | 7.5 | 0.58 |
| JX-135G | JBE-135G | GJ-135 | 32 | 160 | 8.0 | 0.75 |
| JX-165G | JBE-165G | GJ-165 | 34 | 185 | 8.0 | 1.02 |
Made of hot- dip galvanized steel |
||||||
