Grading ring is also used on high voltage equipment. Grading rings are similar to corona rings, but they encircles insulators rather than conductors. Although they may also serve to suppress corona, their main purpose is to reduce the potential gradient along the insulator, preventing premature electrical breakdown.

The potential gradient (electric field) across an insulator is not uniform, but is highest at the end next to the high voltage electrode. If subjected to a high enough voltage, the insulator will break down and become conductive at that end first. Once a section of insulator at the end has electrically broken down and become conductive, the full voltage is applied across the remaining length, so the breakdown will quickly progress from the high voltage end to the other, and a flashover arc will start. Therefore, insulators can stand significantly higher voltages if the potential gradient at the high voltage end is reduced.

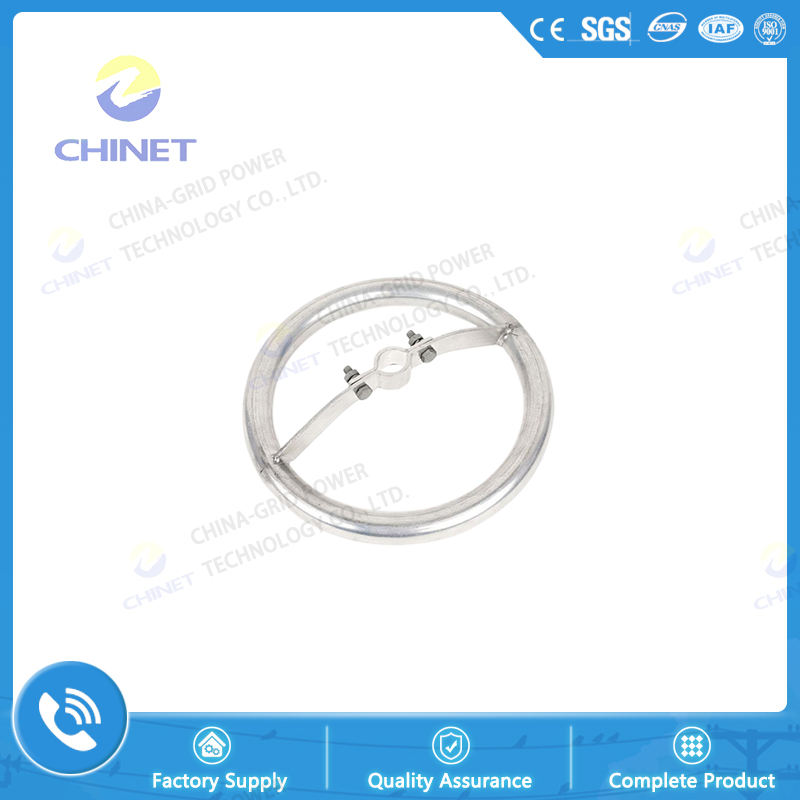

The grading ring surrounds the end of the insulator next to the high voltage conductor. It reduces the gradient at the end, resulting in a more even voltage gradient along the insulator, allowing a shorter, cheaper insulator to be used for a given voltage. Grading rings also reduce aging and deterioration of the insulator that can occur at the HV end due to the high electric field there.

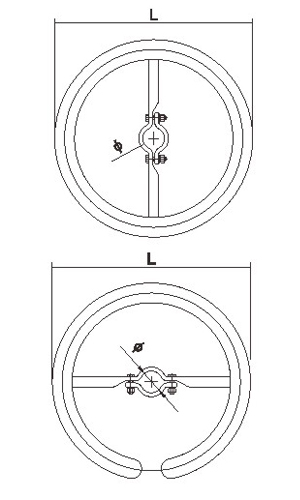

Type		Dimension (mm)		Weight (kg)
		L	Φ
	FJH-500	400	Φ44	1.5
	FJH-330	330	Φ44	1.0
	FJH-220	260	Φ44(Φ26)	0.75
	FJH-110	250	Φ44(Φ26)	0.6
	FJH-35	200	Φ44(Φ26)	0.6
	FJH-500KL	400	Φ44(Φ26)	1.4
	FJH-330KL	330	Φ44(Φ26)	0.95
	FJH-220KL	260	Φ44(Φ26)	0.7
	FJH-110KL	250	Φ44(Φ26)	0.55
