LF Yoke Plate Used for Conductor Connection

Classification:Connecting Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:

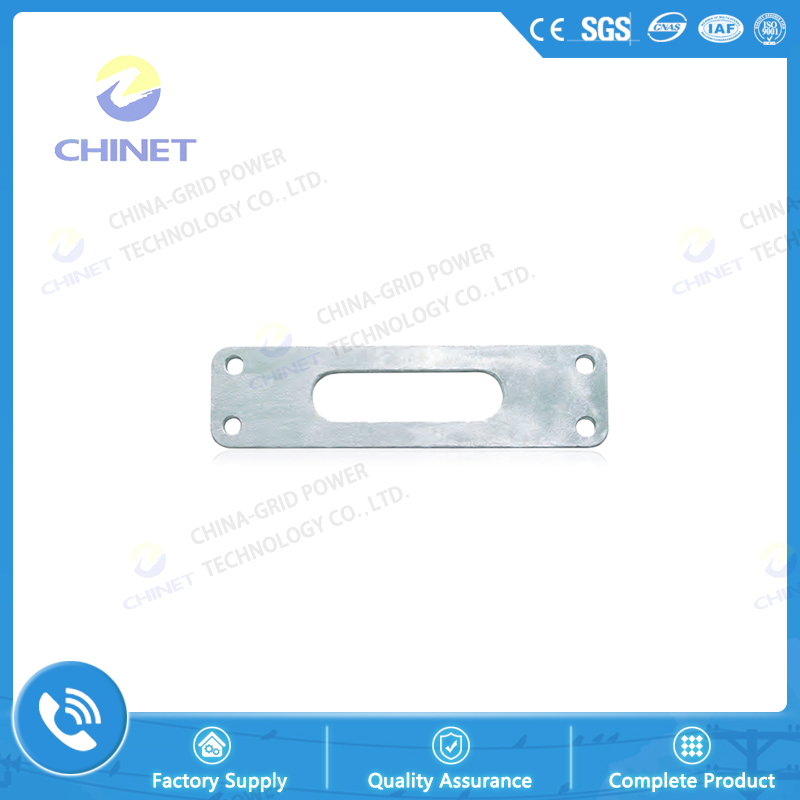

The shape of LF type yoke plate is just like a rectangle in which an oval hole is located in the middle position; it is used for connection between two pieces of separate conductors subjected to twin-connection insulator string (suspension or tension insulator string). It is mainly installed on overhead high-voltage transmission line of 330KV.

Type Dimension
(mm)
Nominal Failure Load
(kN)
Weight (kg)

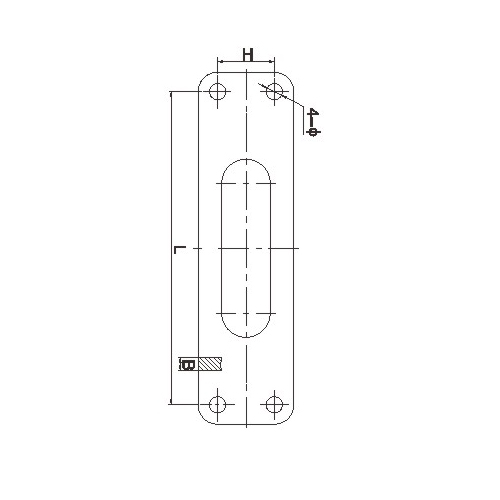

B Φ H L
LF-2140 16 20 70 400 210 5.5
LF-2540 16 24 110 400 250 9.2
LF-3040 16 26 120 400 300 11.4
LF-3055 18 26 120 550 300 12.4
LF-4055 26 30 190 550 400 26.6
Type Dimension
(mm)
Nominal Failure Load
(kN)
Weight
(kg)

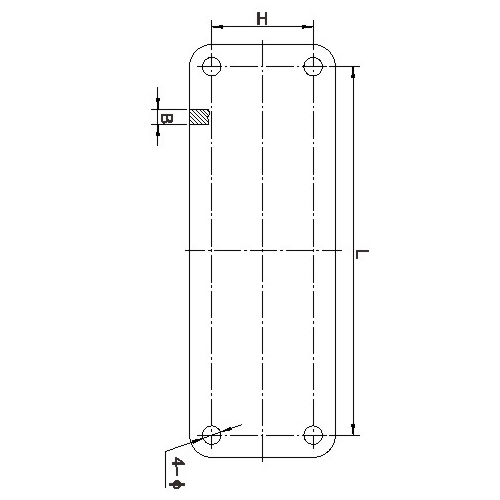

B Φ H L
LF-21-110/400 16 20 110 400 210 8.52
LF-21-120/450 16 20 120 450 210 10.13
LF-21-120/500 16 20 120 500 210 11.18
LF-21-120/600 16 20 120 600 210 13.29
LF-25-120/400 16 24 120 400 250 9.92
LF-25-120/450 16 24 120 450 250 11.05
LF-25-120/500 16 24 120 500 250 12.17
LF-25-120/600 16 24 120 600 250 14.43
LF-32-120/400 18 26 120 400 320 11.46
LF-32-120/500 18 26 120 500 320 14.05
LF-32-120/600 18 26 120 600 320 16.65
LF-42-120/500 20 26 120 500 420 15.62
LF-42-120/550 20 26 120 550 420 17.12
LF-42-120/600 20 26 120 600 420 18.5
LF-50-120/450 24 30 120 450 500 17.95
LF-64-120/450 28 33 120 450 640 22.57
LF-64-120/500 28 33 120 500 640 24.77
LF-64-120/550 28 33 120 550 640 26.97
State Network Model Dimension
(mm)
Nominal Failure Load
(kN)
Weight
(kg)

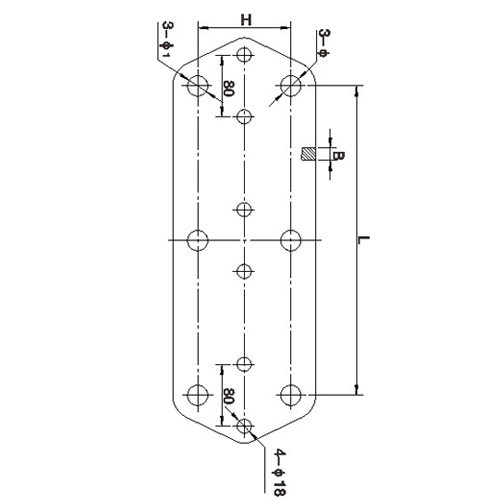

B Φ Φ1 H L
LF-32J-120/400 18 26 26 120 400 320 11.85
LF-42J-120/500 20 26 26 120 500 420 16.05
LF-64/42J-120/500 20 33 26 120 500 420 16.72
