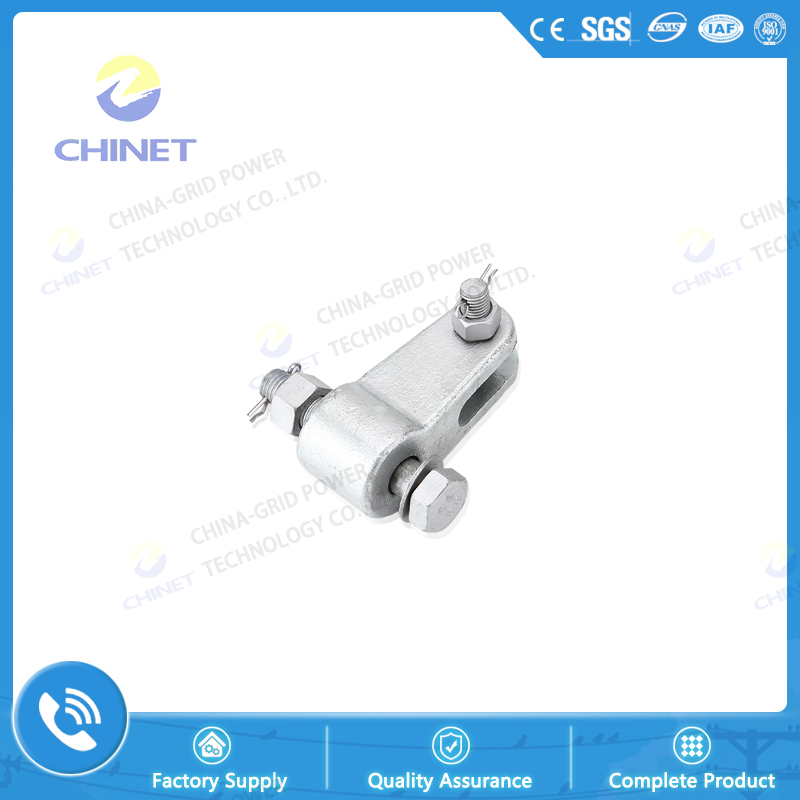

ZBS type clevis is mainly suitable for hanging suspension insulator string (composed of suspension insulator & suspension clamp) on the conductor subjected to the pole or tower; on the other hand, they are also used for hanging tension insulator string (composed of suspension insulator & tension clamp) on the tension conductor subjected to the pole or tower.

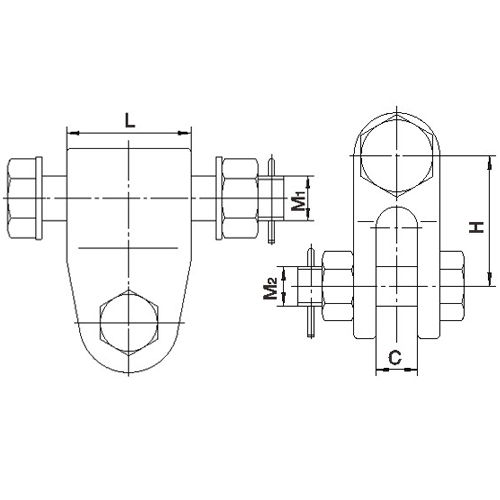

Type		Dimension (mm)					Nominal Failure Load (kN)
		L	H	C	M1	M2
	ZBS-07/10-80	45	80	20	18	16	70
	ZBS-10/12-100	60	100	20	22	18	100
	ZBS-10/21-100	60	100	20	24	18	100
	ZBS-12/16-100	60	100	20	24	22	120
	ZBS-16/21-100	80	100	22	24	24	160
	ZBS-21/42-100	100	100	24	36	24	210
	ZBS-25/42-100	100	100	28	36	27	250
	ZBS-32/42-100	100	100	32	36	30	320
Closed pins are made of stainless steel, the rest are hot-dip galvanized steel
