Classification：Stay Rod Fittings
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
| Type | Line Model | Applicable steel wire | Dimension |
Nominal Failure load (kN) |
Weight (kg) |
||||
|
Cutting Surface (mm2) |
Outside Diameter (mm) |

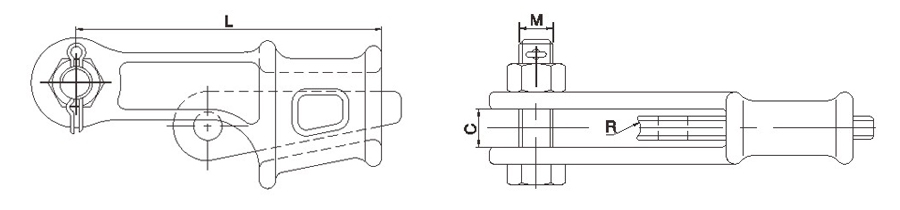

C | M | L | R | ||||
| NX-1 | NE-1 | 25~35 | Φ6.6~7.8 | 18 | 16 | 150 | 6.0 | 45 | 1.19 |
| NX-2 | NE-2 | 50~70 | Φ9.0~11.0 | 20 | 18 | 180 | 7.3 | 88 | 1.76 |
| NX-3 | 100~125 | Φ13.0~14.0 | 24 | 24 | 200 | 7.3 | 143 | 3.20 | |
| NX-4 | 135~150 | Φ15.0~16.0 | 28 | 27 | 220 | 8.0 | 164 | 5.30 | |
|

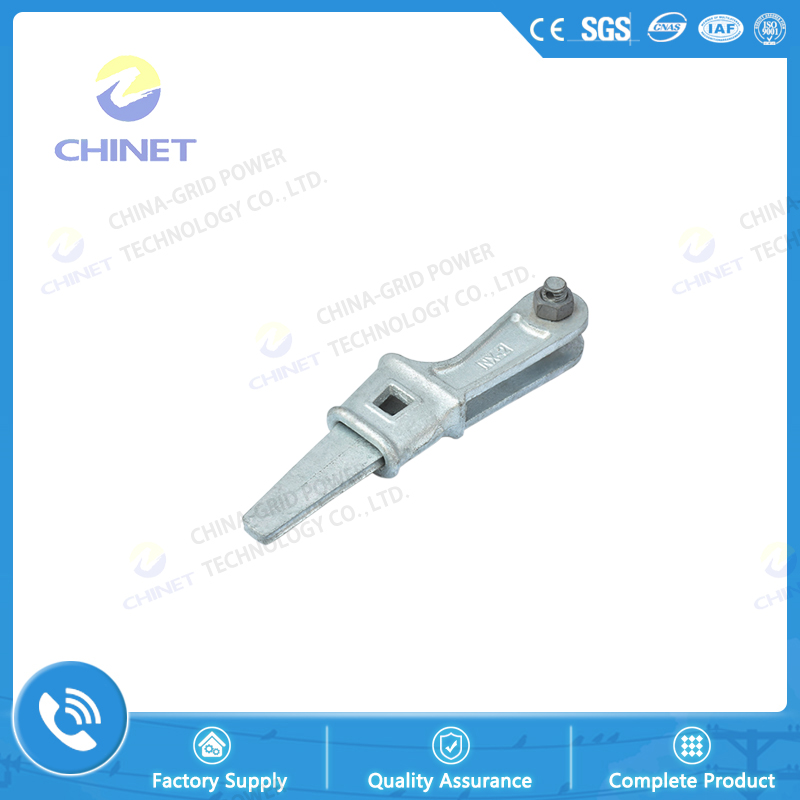

Body and inner wedge are malleable cast iron (NX-4 is cast steel), surface galvanized |
|||||||||
| Type | Applicable steel wire | Dimension |
Nominal Failure load (kN) |
Weight (kg) |
|||||
|
Cutting Surface (mm2) |
Outside Diameter (mm) |
C | M | L | R | ||||
| NX-1L | 25~35 | Φ6.6~7.8 | 18 | 16 | 150 | 6.0 | 45 | 1.19 | |
| NX-2L | 50~70 | Φ9.0~11.0 | 20 | 18 | 180 | 7.3 | 88 | 1.76 | |
| NX-3L | 100~125 | Φ13.0~14.0 | 24 | 24 | 200 | 7.3 | 143 | 3.20 | |
| NX-4L | 135~150 | Φ15.0~16.0 | 28 | 27 | 220 | 8.0 | 164 | 5.30 | |
|
The body and inner wedge are made of aluminum alloy, "L" indicates that the material is aluminum alloy |
|||||||||
