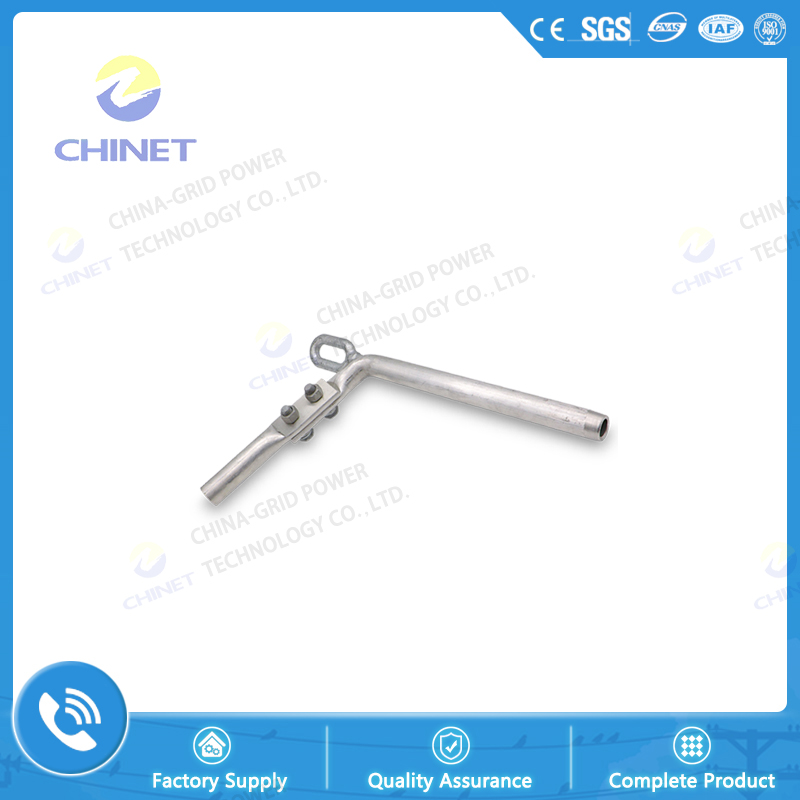

NY Hydraulic Compression Strain Clamp

Classification：Strain Clamp

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Description:

NY type hydraulic compression strain clamp is used to fix & connect conductor onto the tension insulator string or the fittings on pole & tower through sustaining tensile force generated by the conductor.

It is made up of high-strength aluminum & steel materials, with clean surface & durable usage period; meanwhile it is easy for installation, free of hysteresis loss, low carbon & energy saving.

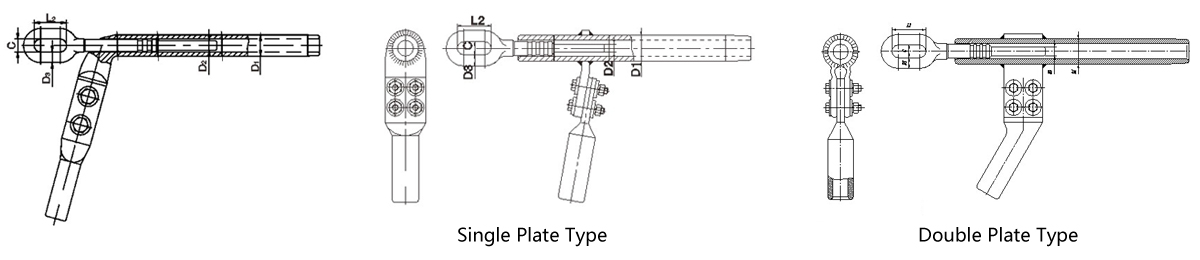

Type	Applicable Conductor	Main Dimensions (mm)					Grip (≥kN)
Type	Applicable Conductor	D1	D2	D3	C	L2	Grip (≥kN)
NY-95/15.1	LGJ-95/15	26	14	16	20	55	33.5
NY-95/20.1	LGJ-95/20	26	14	16	20	55	35.5
NY-120/20.1	LGJ-120/20	30	14	16	20	55	39.0
NY-120/25.1	LGJ-120/25	30	14	16	20	55	45.5
NY-150/20.1	LGJ-150/20	30	14	16	22	65	44.0
NY-150/25.1	LGJ-150/25		14	16	22	65	51.5
NY-150/35.1	LGJ-150/35		16	16	22	65	62.0
NY-185/25.1	LGJ-185/25	32	14	16	22	65	56.5
NY-185/30.1	LGJ-185/30	32	14	16	22	65	61.5
NY-185/45.1	LGJ-185/45	34	18	18	24	70	76.5
NY-240/30.1	LGJ-240/30	36	16	18	24	70	72.0
NY-240/40.1	LGJ-240/40	36	16	18	24	70	79.0
NY-240/55.1	LGJ-240/55	36	20	20	26	78	97.0
NY-300/15.1	LGJ-300/15	40	14	16	22	65	65.0
NY-300/20.1	LGJ-300/20		14	18	24	70	72.0
NY-300/25.1	LGJ-300/25		14	18	24	70	79.5
NY-300/40.1	LGJ-300/40	40	16	18	24	70	88.0
NY-300/50.1	LGJ-300/50	40	18	18	24	70	98.5
NY-300/70.1	LGJ-300/70	42	22	20	26	78	122.0
NY-400/20.1	LGJ-400/20	45	14	18	24	70	84.5
NY-400/25.1	LGJ-400/25		14	18	24	70	91.0
NY-400/35.1	LGJ-400/35		16	20	26	78	99.0
NY-400/50.1	LGJ-400/50		20	20	26	78	117.0
NY-400/65.1	LGJ-400/65	48	22	22	26	78	128.5
NY-400/95.1	LGJ-400/95	48	26	24	30	80	163.0

Type	Applicable Conductor	Main Dimensions (mm)					Grip (≥kN)
Type	Applicable Conductor	D1	D2	D3	C	L2	Grip (≥kN)
NY-500/35.1	LGJ-500/35	52	16	22	26	78	114.0
NY-500/45.1	LGJ-500/45		18	22	26	78	122.0
NY-500/65.1	LGJ-500/65		22	22	26	78	146.5
NY-630/45.1	LGJ-630/45	60	18	22	26	78	141.5
NY-630/55.1	LGJ-630/55		20	24	30	80	156.5
NY-630/80.1	LGJ-630/80		24	24	30	80	183.5
NY-720/50.1	LGJ-720/50	60	20	24	30	80	163.0
NY-720/65.1	LGJ-720/65	60	22	24	30	80	176.0
NY-800/55.1	LGJ-800/55	65	20	24	30	80	183.0
NY-800/70.1	LGJ-800/70		22	26	34	90	197.0
NY-800/100.1	LGJ-800/100		26	26	34	90	229.0
