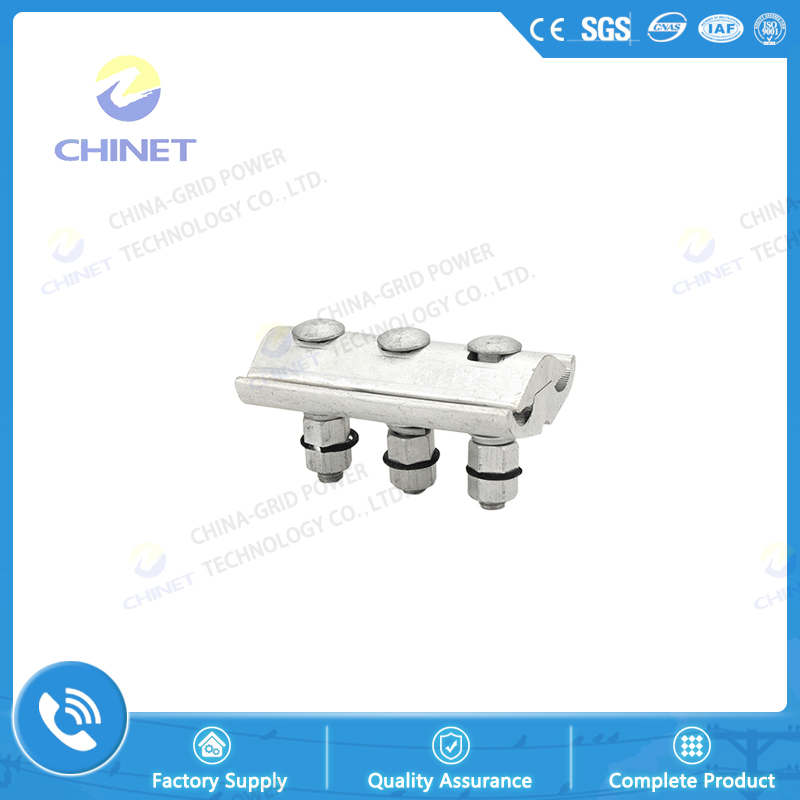

JBY Overhead Line Parallel Groove Clamp with Moment Nut

Classification:Overhead Insulating Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Product Description
Description:

The clamp body adopts a span design to meet the branch wiring between the main line and the branch line in different ranges. The energy storage design is modified by the finite element analysis software to form a "single breath" energy storage system with the connected wires. , To maintain a constant contact pressure between the wire and the clamp; greatly improve the overload capacity and service life of the clamp;

The use of torque nuts can easily achieve the specified installation torque during construction, avoid manual installation failure and damage to the conductor. The wire grooves where the clamps and the wires are in contact are coated with a unique conductive antioxidant. Can be equipped with insulation cover.

Features:

1. Special torque nut with the clamp wires to keep the long term between the constant

2. Contact pressure, body curved design, with the wires connected together constitute the “same breath”of the energy storage system, greatly improved clamp overload

3. Capacity and service life, clamp and the wire contacts within the groove are coated with a unique conductive antioxidant.

Type Applicable Main Line Range
(mm2)
Applicable Extension Range
(mm2)

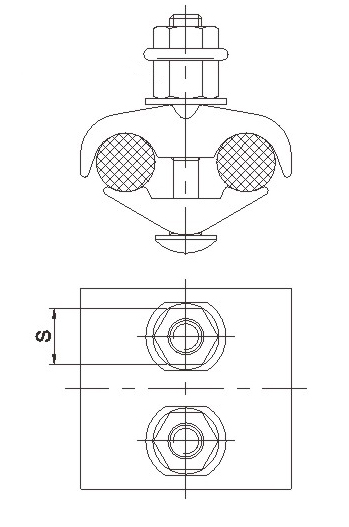

Wire Diameter Range Bolt Quantity S L Mounting Torque N.m Equivalent Model
JBY-302 10~95 10~95 Φ3.8~12.0 2×M8×30 14 46 25±3 PGA-302、JBL-0
JBY-502 25~150 25~70 Φ6.0~16.0 2×M8×50 14 50 35±4 PGA-502
JBY-503 25~150 25~150 Φ6.0~16.0 2×M8×50 14 50 35±4 PGA-503、JBL-1
JBY-602 50~240 25~120 Φ8.3~18.4 2×M12×65 19 82 50±5 PGA-602
JBY-603 50~240 50~240 Φ8.3~18.4 3×M12×65 19 132 50±5 PGA-603、JBL-2
JBY-803 95~300 95~300 Φ11.6~23.0 3×M12×65 19 133 55±5 PGA-803、JBL-3
