With the extensive application high-voltage, the need for cables in the cable trench laying and high voltage line lower upwards and downwards under the fixed installation. To ensure the safe operation of the cable, taking into account energy-saving factors, the company installed by the user in different ways, different places such as R&D produced a series of dedicated high voltage cable with a fixed fittings to meet the needs of customers

Because of its product design is reasonable, energy security, in operation praised by customers, has in the power system to promote

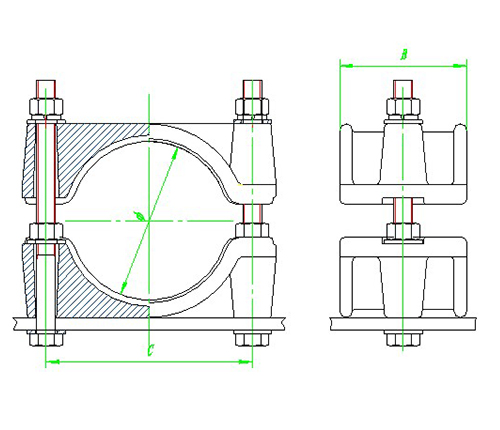

Type		Applicable Conductor	φ	C	Bolt	Remark
	JGF-70C100	φ55~70	70	100	2-M12	Non-slip high-voltage cable clamp, unique anti-slip double-curved trunking design, better protection for cables than traditional cable clamps
	JGF-85C115	φ70~85	85	115	2-M12
	JGF-100C130	φ85~100	100	130	2-M12
	JGF-115C145	φ100~115	115	145	2-M12
	JGF-130C160	φ115~130	130	160	2-M12
	JGF-145C175	φ130~145	145	175	2-M12
	JGF-160C190	φ145~160	160	190	2-M12
	JGF-175C205	φ160~175	175	205	2-M12
	JGF-190C220	φ175~190	190	220	2-M12

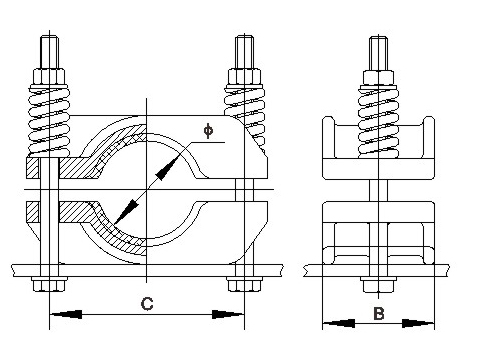

Type		Applicable Conductor	φ	C	B	Bolt	Remark
	JGW-0	φ65~75	75	115	60	2-M12	High-voltage single-core steel cable clamp
	JGW-1	φ75~84	84	120	80	2-M12
	JGW-2	φ85~94	94	130	80	2-M12
	JGW-3	φ95~104	104	140	80	2-M14
	JGW-4	φ105~114	114	150	80	2-M14
	JGW-5	φ115~124	124	160	90	2-M14
	JGW-6	φ125~134	134	175	90	2-M16
	JGW-7	φ135~150	146	190	90	2-M16
	JGW-8	145~160	160	210	90	2-M12

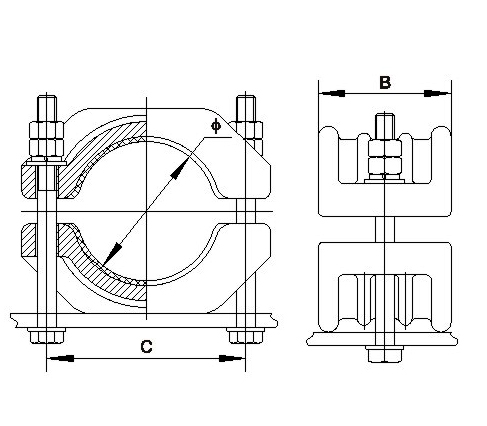

Type		Applicable Conductor	φ	C	B	Bolt	Remark
	JGH-01	φ55~65	130	75	60	2-M12	High voltage single core flexible cable clamp
	JGH-0	φ65~80	80	140	75	2-M12
	JGH-1	φ80~100	100	150~165	8O	2-M12
	JGH-2	φ100~120	120	185	8O	2-M12
	JGH-3	φ120~136	136	190	90	2-M12
	JGH-4	φ136~160	160	210	90	2-M12

Type		Applicable Conductor
	JGW-1F	φ75~84
	JGW-2F	φ85~94
	JGW-3F	φ95~104
	JGW-4F	φ105~114
	JGW-5F	φ115~124
	JGW-6F	φ125~134
	JGW-7F	φ135~146

Type		Applicable Conductor
	JGH-1F	φ75~84
	JGH-2F	φ85~94
	JGH-3F	φ95~104
	JGH-4F	φ105~114
	JGH-5F	φ115~124
	JGH-6F	φ125~134
	JGH-7F	φ135~146
